1014
1014.2

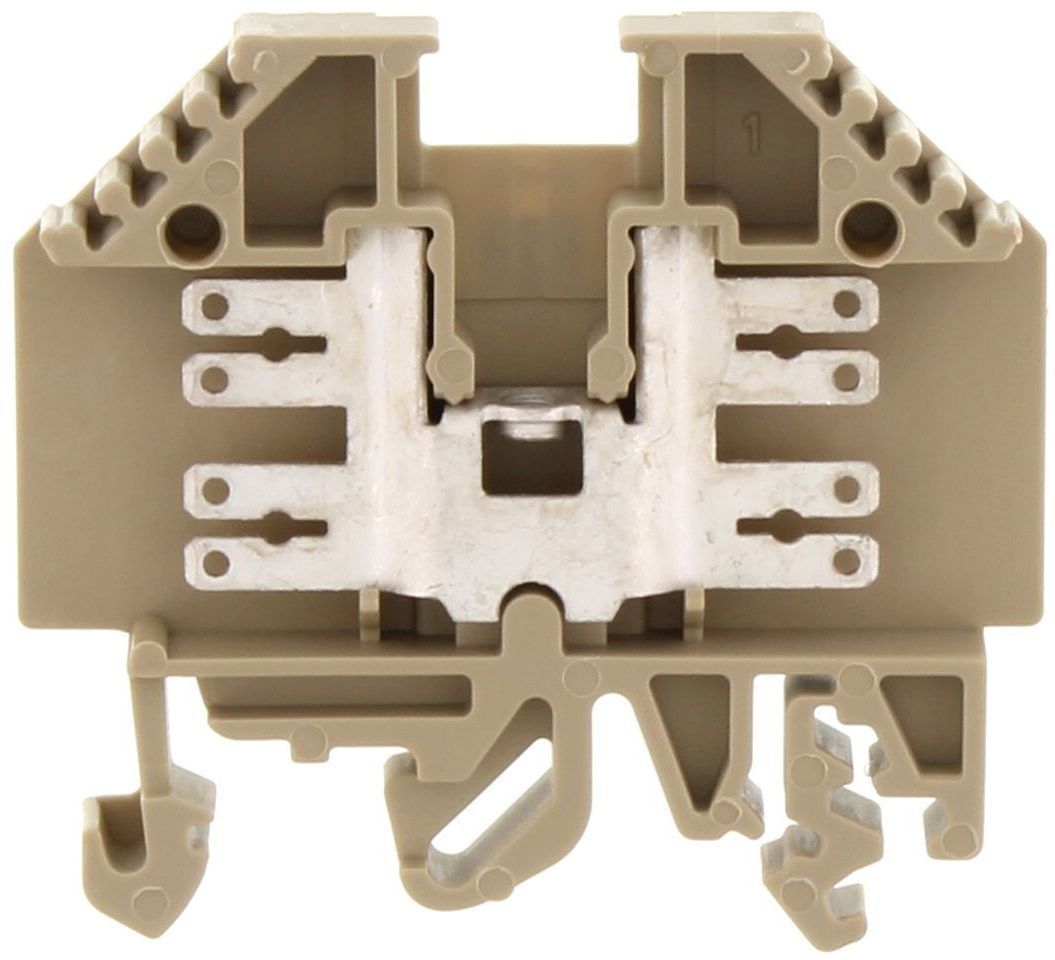

FF 2,5 BG
Feed-through terminal, Faston Spade connection, Mounting type:Mounting rail TS 35/7.5 and TS 32, Width: 6 mm, Colour: Beige
Technical data
- Rated voltage
- 500 V
- Connection principle
- Spade connection
- Colour
- Beige
- Width
- 6 mm
- Length
- 48 mm
- Mounting type
- Mounting rail TS 35/7.5 and TS 32
- Connection position
- Lateral
- Connections
- 4
- Connections FastOn 2.8 / FastOn 6.3
- 4 / 8
- Contamination degree
- 3
- EAC approval
- TR ZU 004/2011
- EAC approval granted
- Yes
- EU-POP compliant
- Yes
- End plate required
- Yes
- Flammability class UL 94
- V-2
- Gauge plug acc. to EN 60 947-1
- A4
- Height TS 32
- 52 mm
- Height TS 35/7.5
- 47 mm
- Insulating housing
- Polyamide 6.6
- KEMA KEUR approval
- EN 60947-7-1:2009
- KEMA KEUR approval granted
- Yes
- KEMA rated current FastOn 2.8 / FastOn 6.3
- 13,5 / 24
- KEMA rated impulse voltage TS 35 / TS 32
- 8 / 6
- KEMA rated voltage
- 500 V
- KEMA wire cross-section stranded
- 2.5
- Maximum power dissipation for nominal condition
- 0.77 W
- Number of cross-connection channels
- 1
- Number of levels
- 1
- Number of terminals per level
- 4
- Number of test pick-off options
- 1
- Overvoltage category
- III
- PROP 65 compliant
- Yes
- REACH Candidate Substance Note
- No
- REACH compliant
- Yes
- REACH reference date
- 2026-02-04
- Rated current FastOn 2.8 / FastOn 6.3
- 13,5 / 24
- Rated impulse voltage TS 35 / TS 32
- 8 / 6
- RoHS compliant
- Yes
- TSCA compliant
- Yes
- Weight per piece (including packaging)
- 8.6 g
- Weight per piece (not including packaging)
- 7.2 g
- Working temperature, max.
- 105 °C
- Working temperature, min.
- -40 °C
Commercial data
- Country of origin
- BG
- Customs number
- 85369010
- GTIN (EAN)
- 4044211003203
