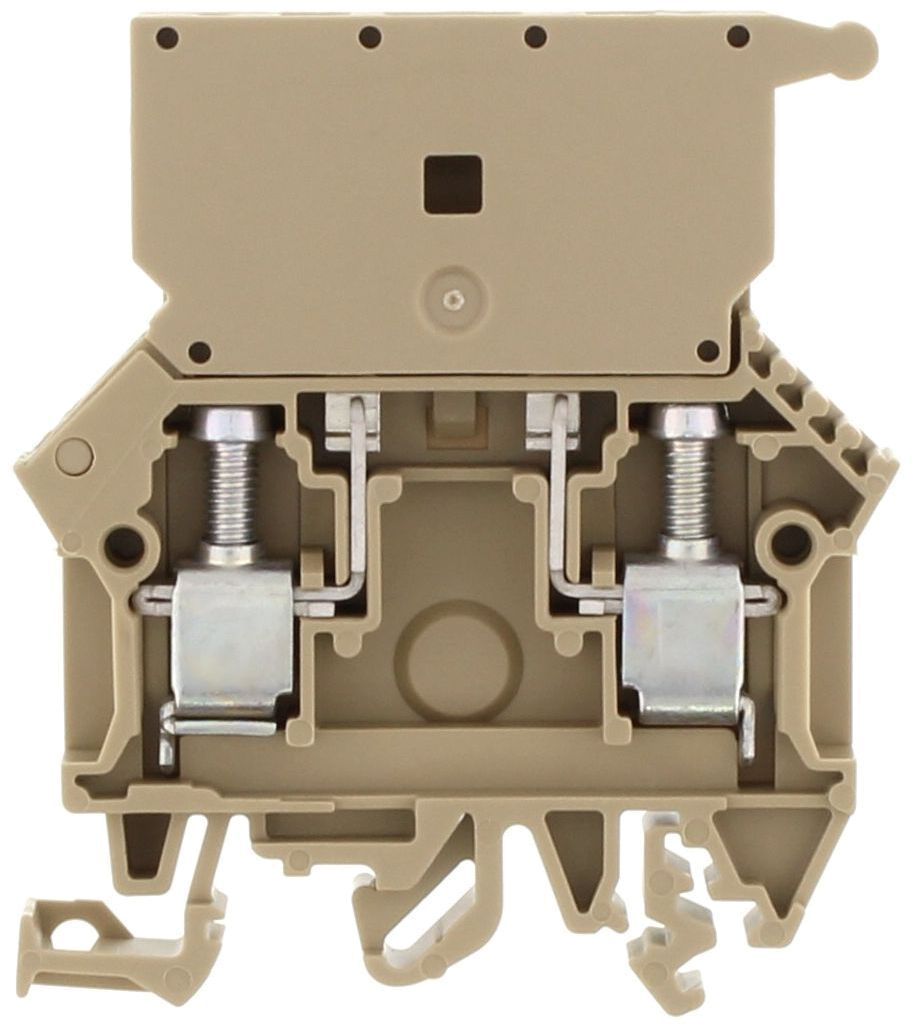

1101.2 SIK 10 BG · CONTA-CLIP China

Fuse-disconnect terminal, Screw connection, Mounting type:Mounting rail TS 35/7.5 and TS 32, Rated cross-section: 10 mm², Width: 8 mm, Colour: Beige

Download datasheet

Technical data

Rated cross-section: 10 mm²
Connection principle: Screw connection
Colour: Beige
Width: 8 mm
Length: 60 mm
Mounting type: Mounting rail TS 35/7.5 and TS 32
Connection position: Lateral
Connections: 2 / extraction lever
Contamination degree: 3
DNV GL Certificate number: TAE00002JJ
DNV GL Location Classes: Temperature: B, Humidity: B, Vibration: A
DNV GL approval granted: 1
DNV GL rated cross-section: 10 mm²
DNV GL rated current: 10 A
DNV GL rated voltage: 500 V
DNV GL test standard: IEC 60947-7-3:2002
Design of fuse holder: Swivelling
Design of fuse insert: G fuse 5x20 / 5x25 / 5x30
EAC approval: TR ZU 004/2011
EAC approval granted: Yes
EU-POP compliant: Yes
End plate required: Yes
Flammability class UL 94: V-2
Fuse size: 5 x 20 / 5 x 25 / 5 x 30
Gauge plug acc. to EN 60 947-1: A5
Height TS 32: 69 mm
Height TS 35/7.5: 73 mm
Insulating housing: Polyamide 6.6
KEMA KEUR approval: EN 60947-7-3:2009
KEMA KEUR approval granted: Yes
KEMA fuse size: 5 x 20 / 5 x 25 / 5 x 30
KEMA power loss in compound arrangement - only short-circuit protection, max.: 4 / 6,3
KEMA power loss in compound arrangement - overload and short-circuit protection, max.: 2,5 / 6,3
KEMA power loss in singular arrangement - only short-circuit protection, max.: 4 / 10
KEMA power loss in singular arrangement - overload and short-circuit protection, max.: 2,5 / 6,3
KEMA rated current: 10 A
KEMA rated impulse voltage: 8 kV
KEMA rated voltage: 500 V
KEMA torque, max.: 2 Nm
KEMA torque, min.: 1.2 Nm
KEMA voltage fuse, max.: 250
KEMA wire cross-section single core (rigid), min.: 0.2 mm²
KEMA wire cross-section single-core (rigid), max.: 10 mm²
KEMA wire cross-section stranded, max.: 10 mm²
KEMA wire cross-section stranded, min.: 0.2 mm²
Nemko approval: EN 60947-7-3:2002
Nemko approval granted: Yes
Number of levels: 1
Number of terminals per level: 2
Overvoltage category: III
PROP 65 compliant: Yes
Power loss in compound arrangement - only short-circuit protection, max.: 4 / 6,3
Power loss in compound arrangement - overload and short-circuit protection, max.: 2,5 / 6,3
Power loss in singular arrangement - only short-circuit protection, max.: 4 / 10
Power loss in singular arrangement - overload and short-circuit protection, max.: 2,5 / 6,3
REACH Candidate Substance Note: No
REACH compliant: Yes
REACH reference date: 2026-02-04
Rated current (as fuse-disconnect terminal): 10
Rated impulse voltage: 8 kV
Rated voltage (determined by the illuminated display and fuse being used): 500
RoHS compliant: Yes
Screw head: Slotted
Screw threading: M 4
Stripping length: 12 mm
TSCA compliant: Yes
Tightening torque, max.: 2 Nm
Tightening torque, min.: 1.2 Nm
UL Recognized: 1
UL Usegroup B: rated current: 10 A
UL Usegroup B: rated voltage: 600 V
UL Usegroup C: rated current: 10 A
UL Usegroup C: rated voltage: 600 V
UL approval: UL 1059
UL factory wiring: Yes
UL field wiring: Yes
UL torque: 16 Lb In
UL wire cross-section single-core (rigid) AWG, max.: 12
UL wire cross-section single-core (rigid) AWG, min.: 22
UL wire cross-section stranded AWG, max.: 12
UL wire cross-section stranded AWG, min.: 22
UL wire material: Cu
Voltage fuse: 250
Weight per piece (including packaging): 25 g
Weight per piece (not including packaging): 23 g
Wire cross-section AWG, max.: 8
Wire cross-section AWG, min.: 22
Wire cross-section single core (rigid)/stranded, max.: 10 mm²
Wire cross-section single-core (rigid) / stranded, min.: 0.2 mm²
Wire cross-section stranded with wire-end ferrule, min.: 0.2 mm²
Wire cross-section stranded with wire-end ferrules, max.: 10 mm²
Wire cross-section stranded, max.: 10 mm²
Wire cross-section stranded, min.: 0.2 mm²
Working temperature, max.: 105 °C
Working temperature, min.: -40 °C
cUL Recognized: 1
cUL Usegroup B: rated current: 10 A
cUL Usegroup B: rated voltage: 600 V
cUL Usegroup C: rated current: 10 A
cUL Usegroup C: rated voltage: 600 V
cUL approval: C22.2 No 158
cUL torque: 16 Nm
cUL wire cross-section single-core (rigid) AWG, max.: 12
cUL wire cross-section single-core (rigid) AWG, min.: 22
cUL wire cross-section stranded AWG, max.: 12
cUL wire cross-section stranded AWG, min.: 22
cUL wire material: Cu
