1392
1392.2

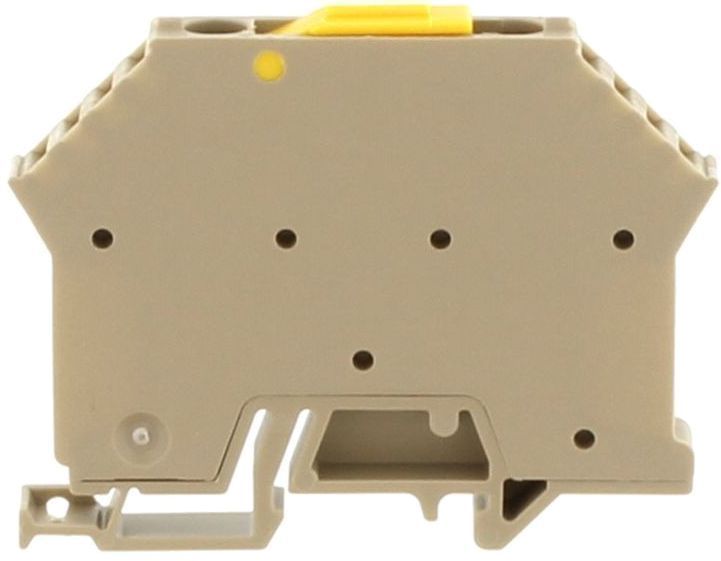

TRK 1,5/15 BG
Disconnect terminal, Screw connection, Mounting type: Mounting rail TS 15/5.5, Rated cross-section: 2.5 mm², Width: 6 mm, Colour: Beige
Technical data
- Rated current
- 10 A
- Rated voltage
- 400 V
- Rated cross-section
- 2.5 mm²
- Connection principle
- Screw connection
- Colour
- Beige
- Width
- 6 mm
- Length
- 48 mm
- Mounting type
- TS 15
- Connection position
- Lateral
- Connections
- 2
- Contamination degree
- 3
- Design of longitudinal partition
- Swivelling
- EU-POP compliant
- Yes
- End plate required
- Yes
- Flammability class UL 94
- V-2
- Gauge plug acc. to EN 60 947-1
- A4
- Height TS 15/5.5
- 38.3
- Insulating housing
- Polyamide 6.6
- KEMA KEUR approval
- EN 60947-7-1:2009
- KEMA KEUR approval granted
- Yes
- KEMA rated current
- 10 A
- KEMA rated impulse voltage
- 4 kV
- KEMA rated voltage
- 400 V
- KEMA wire cross-section single core (rigid), min.
- 0.2 mm²
- KEMA wire cross-section single-core (rigid), max.
- 4 mm²
- KEMA wire cross-section stranded, max.
- 4 mm²
- KEMA wire cross-section stranded, min.
- 0.2 mm²
- Maximum power dissipation for nominal condition
- 0.32 W
- Nemko approval
- EN 60947-7-1:2007
- Nemko approval granted
- Yes
- Number of levels
- 1
- Number of terminals per level
- 2
- Overvoltage category
- III
- PROP 65 compliant
- Yes
- REACH Candidate Substance Note
- No
- REACH compliant
- Yes
- REACH reference date
- 2026-02-04
- Rated impulse voltage
- 4 kV
- RoHS compliant
- Yes
- Screw head
- Slotted
- Screw threading
- M 3
- Stripping length
- 8 mm
- TSCA compliant
- Yes
- Tightening torque, max.
- 1 Nm
- Tightening torque, min.
- 0.5 Nm
- UL Recognized
- 1
- UL Usegroup B: rated current
- 15 A
- UL Usegroup B: rated voltage
- 600 V
- UL Usegroup C: rated current
- 15 A
- UL Usegroup C: rated voltage
- 600 V
- UL approval
- UL 1059
- UL factory wiring
- Yes
- UL field wiring
- Yes
- UL torque
- 7 Lb In
- UL wire cross-section single-core (rigid) AWG, max.
- 12
- UL wire cross-section single-core (rigid) AWG, min.
- 22
- UL wire cross-section stranded AWG, max.
- 12
- UL wire cross-section stranded AWG, min.
- 22
- UL wire material
- Cu
- Weight per piece (including packaging)
- 9.57 g
- Weight per piece (not including packaging)
- 8.8 g
- Wire cross-section AWG, max.
- 12
- Wire cross-section AWG, min.
- 22
- Wire cross-section single core (rigid)/stranded, max.
- 4 mm²
- Wire cross-section single-core (rigid) / stranded, min.
- 0.2 mm²
- Wire cross-section stranded with wire-end ferrule, min.
- 0.2 mm²
- Wire cross-section stranded with wire-end ferrules, max.
- 2.5 mm²
- Wire cross-section stranded, max.
- 4 mm²
- Wire cross-section stranded, min.
- 0.2 mm²
- Working temperature, max.
- 105 °C
- Working temperature, min.
- -40 °C
- cUL Recognized
- 1
- cUL Usegroup B: rated current
- 15 A
- cUL Usegroup B: rated voltage
- 600 V
- cUL Usegroup C: rated current
- 15 A
- cUL Usegroup C: rated voltage
- 600 V
- cUL approval
- C22.2 No 158
- cUL torque
- 7 Nm
- cUL wire cross-section single-core (rigid) AWG, max.
- 12
- cUL wire cross-section single-core (rigid) AWG, min.
- 22
- cUL wire cross-section stranded AWG, max.
- 12
- cUL wire cross-section stranded AWG, min.
- 22
- cUL wire material
- Cu
Commercial data
- Country of origin
- CZ
- Customs number
- 85369010
- GTIN (EAN)
- 4044211044374
More in this series
Disconnect terminals

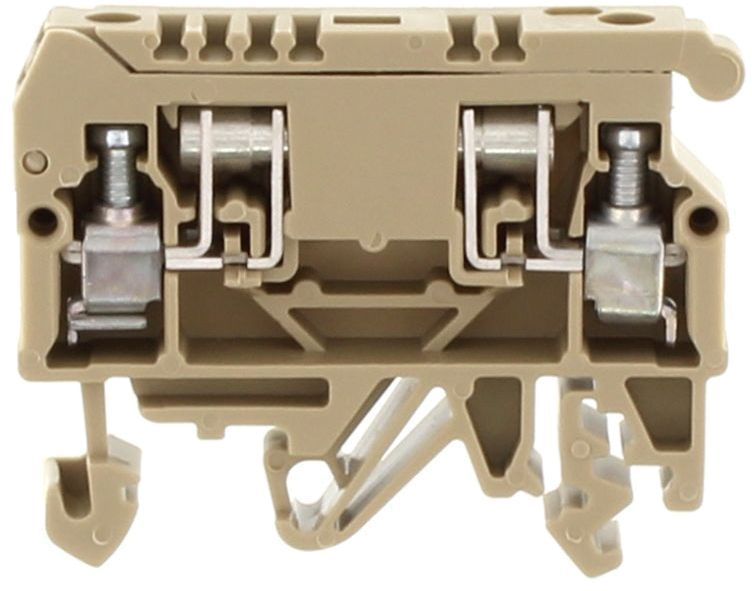

1381.2
STK 2/K BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²

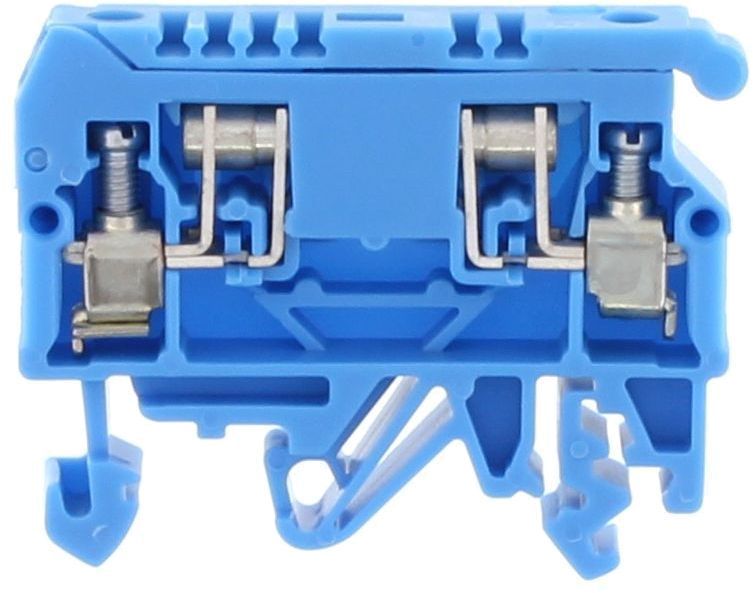

1381.5
STK 2/K BU
Colour: Blue · Connection principle: Screw connection · Rated cross-section: 4 mm²

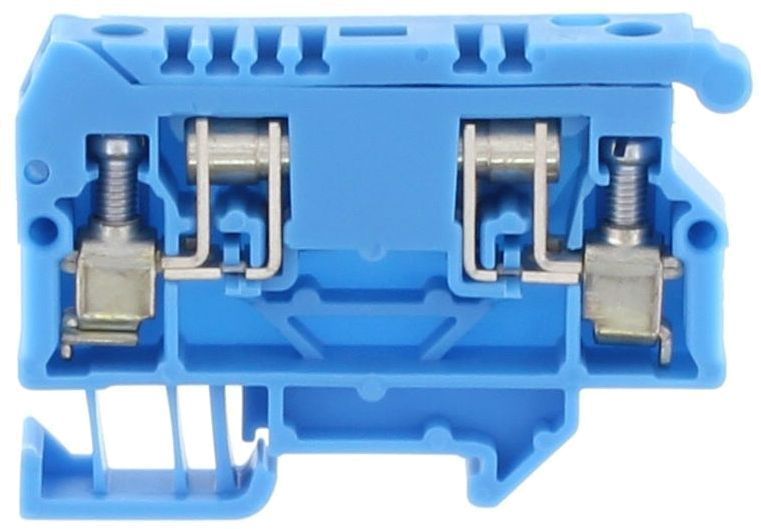

1382.2
STK 2/15/K BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²
1382.5
STK 2/15/K BU
Colour: Blue · Connection principle: Screw connection · Rated cross-section: 4 mm²

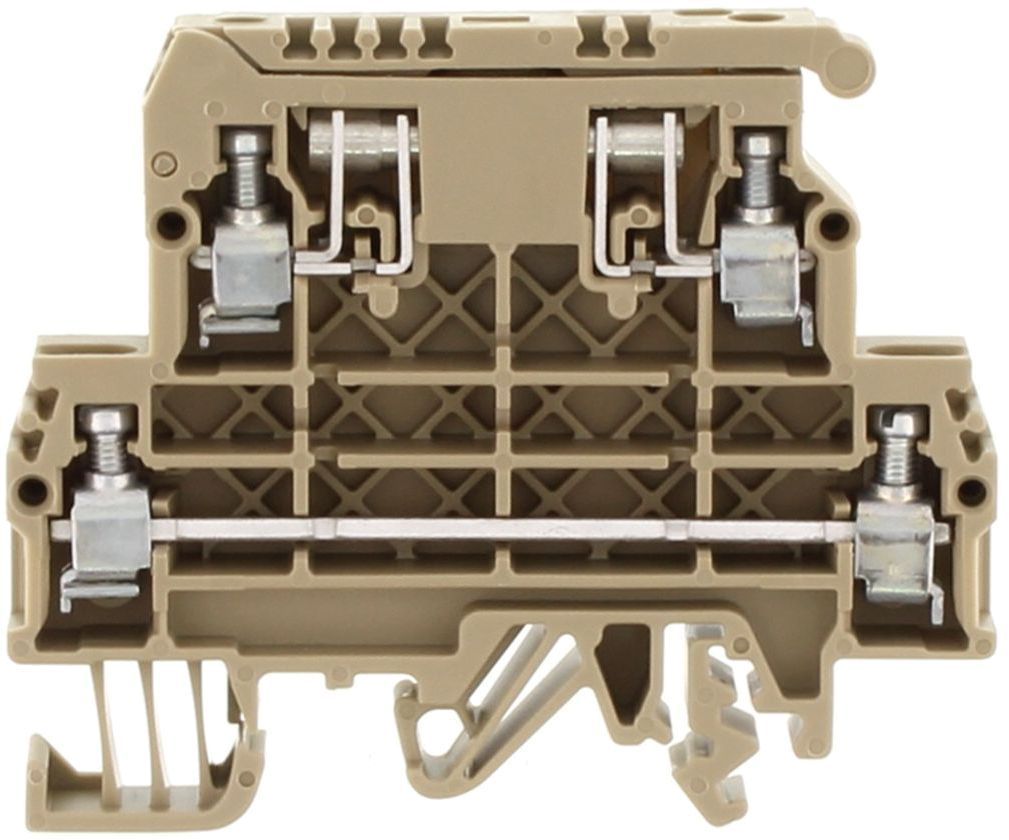

1383.2
STKD 1/K BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²

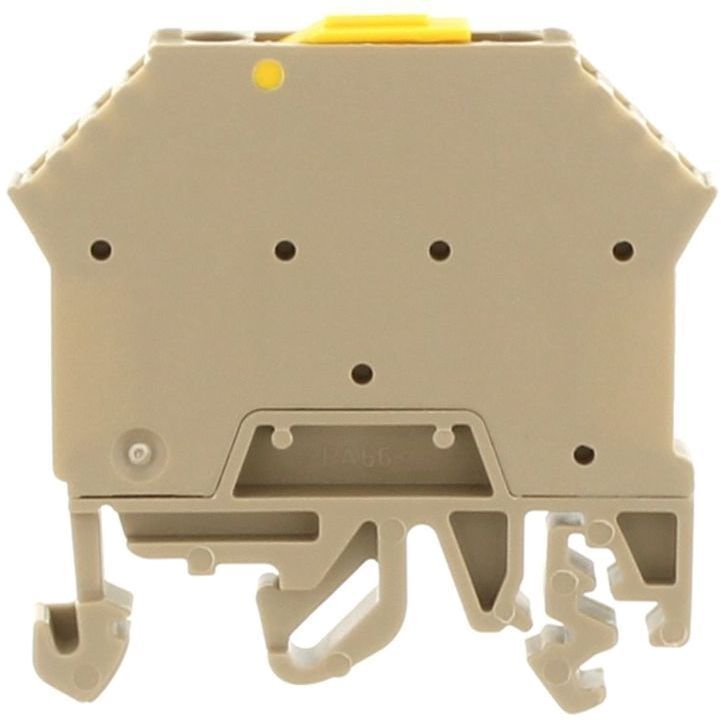

1390.2
TRK 1,5 BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 2.5 mm²

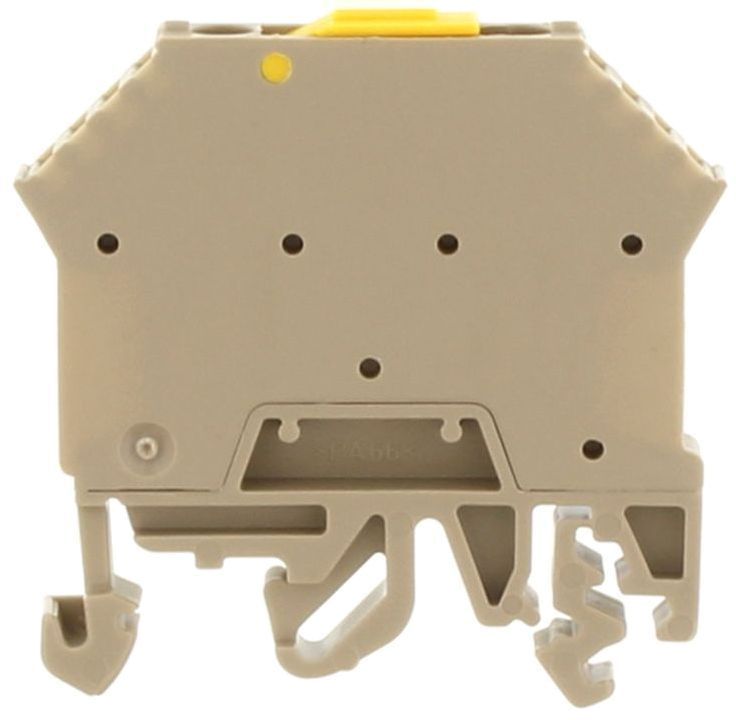

1391.2
TRK 1,5/STB BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 2.5 mm²

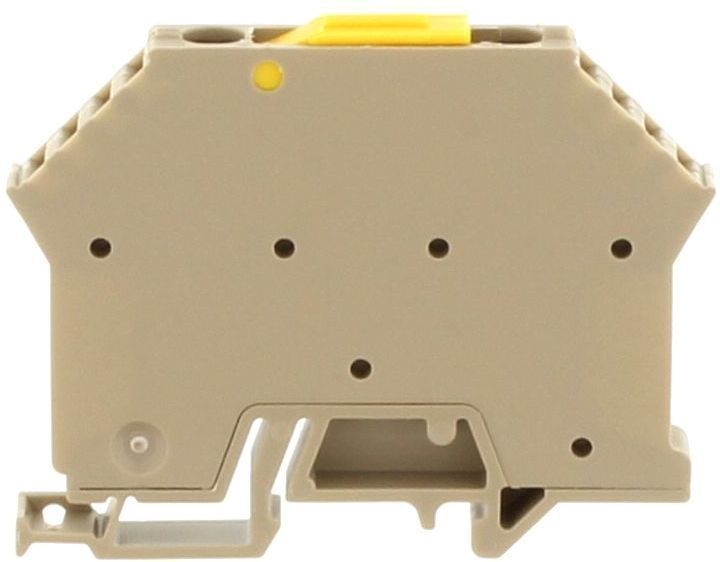

1393.2
