Feed-through terminals

Durchgangsklemmen · Feed-through terminals

Type

79 / 79

Featured models from each series. Key articles are also marked ★ in the table below.

3200.1 FRK 1,5/2A GN Colour: Green · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3200.2 FRK 1,5/2A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3200.3 FRK 1,5/2A OG Colour: Orange · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3200.5 FRK 1,5/2A BU Colour: Blue · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3200.8 FRK 1,5/2A YE Colour: Yellow · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3200.9 FRK 1,5/2A RD Colour: Red · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3201.1 FRK 1,5/3A GN Colour: Green · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3201.2 FRK 1,5/3A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3201.3 FRK 1,5/3A OG Colour: Orange · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

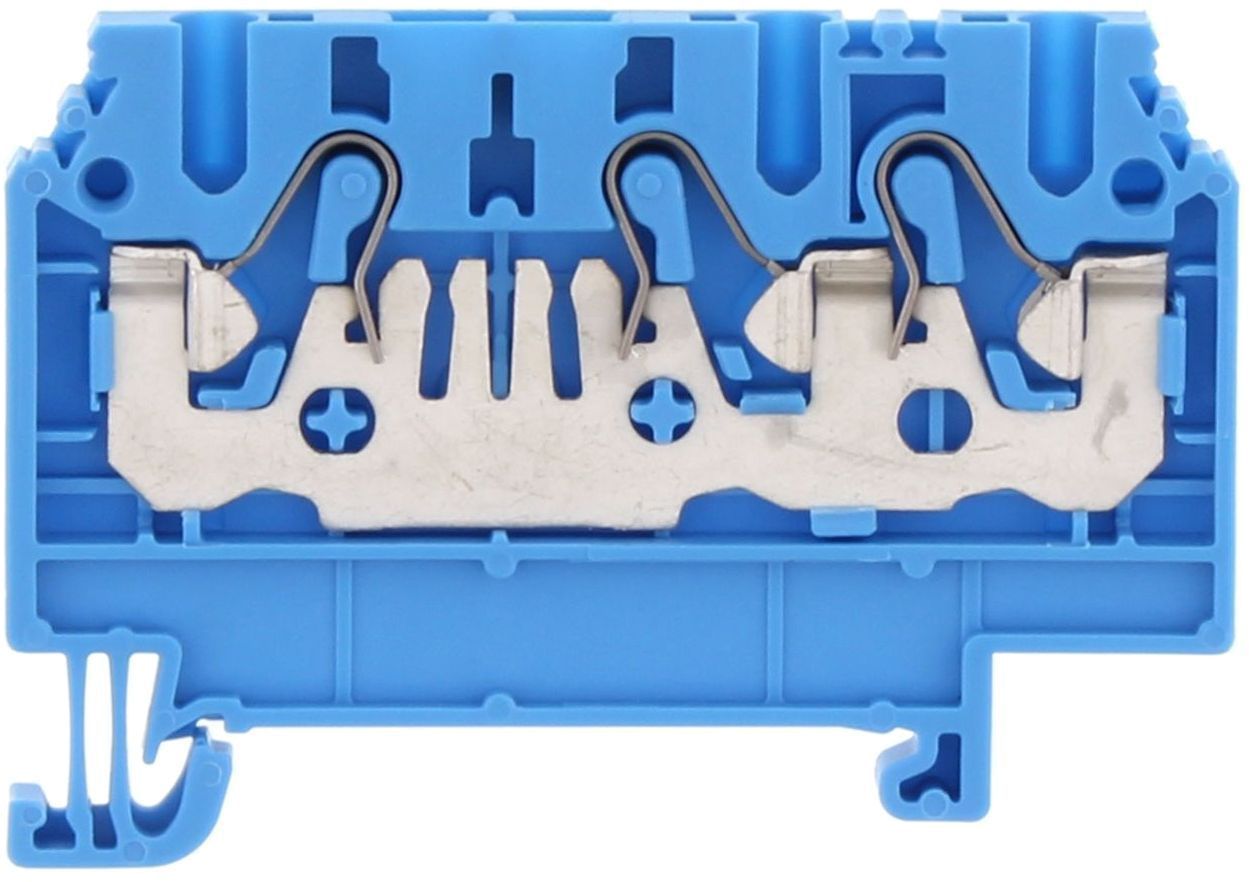

3201.5 FRK 1,5/3A BU Colour: Blue · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3201.8 FRK 1,5/3A YE Colour: Yellow · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3201.9 FRK 1,5/3A RD Colour: Red · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3202.2 FRK 1,5/4A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3202.3 FRK 1,5/4A OG Colour: Orange · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

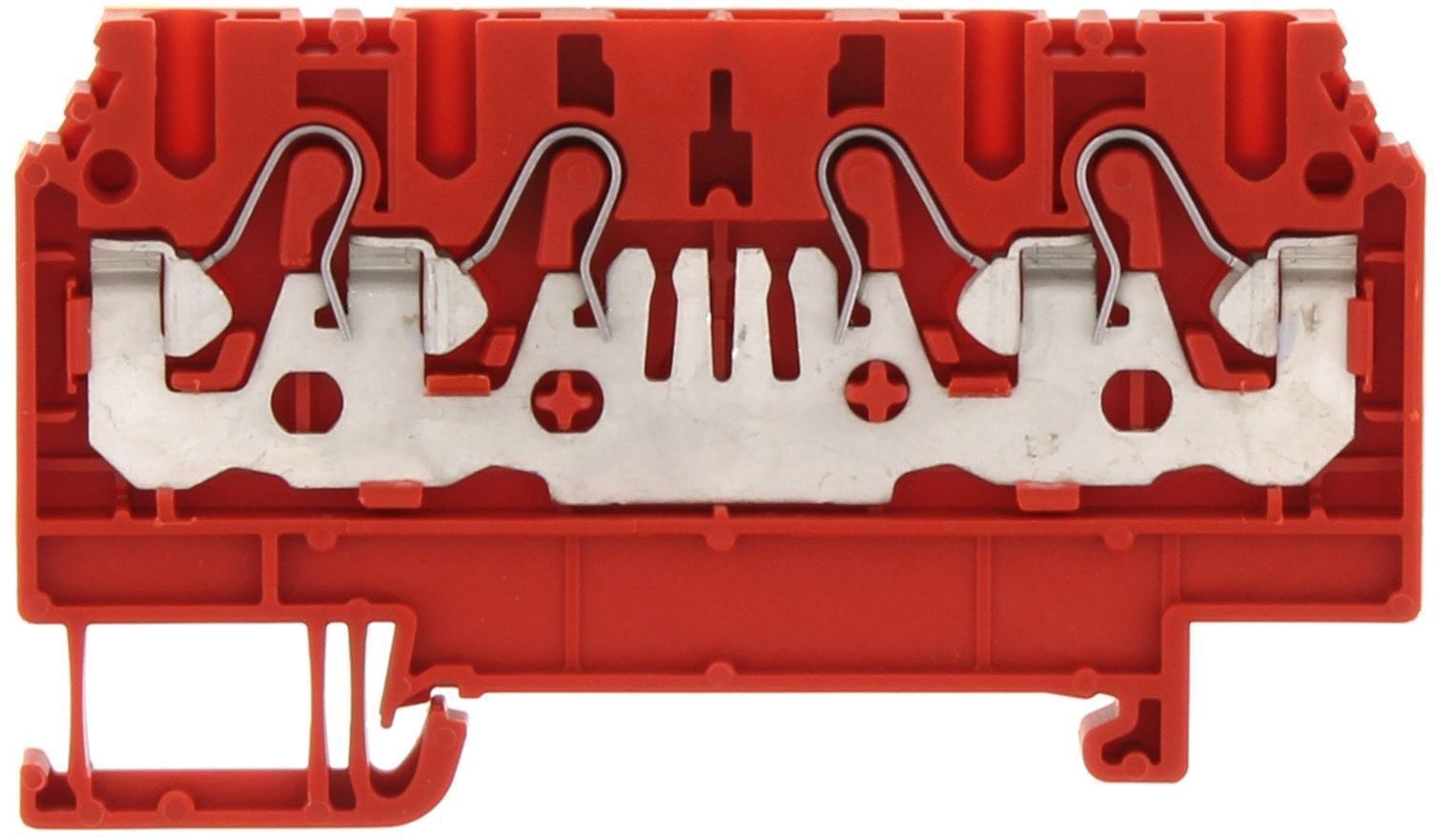

3202.9 FRK 1,5/4A RD Colour: Red · Connection principle: Push-in connection · Rated cross-section: 1.5 mm²

3210.2 FRK 2,5/2A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 2.5 mm²

3211.2 FRK 2,5/3A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 2.5 mm²

3212.2 FRK 2,5/4A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 2.5 mm²

3216.2 FRKI 6-10/3A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 10 mm²

3220.2 FRK 4/2A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 4 mm²

3221.2 FRK 4/3A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 4 mm²

3222.2 FRK 4/4A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 4 mm²

3276.2 FRKI 2,5-4 BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 4 mm²

3277.2 FRKI 6-10 BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 10 mm²

3278.2 FRKI 16/2A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 16 mm²

3294.2 FRK 16/2A BG Colour: Beige · Connection principle: Push-in connection · Rated cross-section: 16 mm²

Specification table

Article no.	Type	Colour	Connection principle	Rated cross-section	Rated current
3200.1	FRK 1,5/2A GN	Green	Push-in connection	1.5 mm²	17.5 A
★3200.2	FRK 1,5/2A BG	Beige	Push-in connection	1.5 mm²	17.5 A
3200.3	FRK 1,5/2A OG	Orange	Push-in connection	1.5 mm²	17.5 A
3200.5	FRK 1,5/2A BU	Blue	Push-in connection	1.5 mm²	17.5 A
3200.8	FRK 1,5/2A YE	Yellow	Push-in connection	1.5 mm²	17.5 A
3200.9	FRK 1,5/2A RD	Red	Push-in connection	1.5 mm²	17.5 A
3201.1	FRK 1,5/3A GN	Green	Push-in connection	1.5 mm²	17.5 A
★3201.2	FRK 1,5/3A BG	Beige	Push-in connection	1.5 mm²	17.5 A
3201.3	FRK 1,5/3A OG	Orange	Push-in connection	1.5 mm²	17.5 A
3201.5	FRK 1,5/3A BU	Blue	Push-in connection	1.5 mm²	17.5 A
3201.8	FRK 1,5/3A YE	Yellow	Push-in connection	1.5 mm²	17.5 A
3201.9	FRK 1,5/3A RD	Red	Push-in connection	1.5 mm²	17.5 A
3202.1	FRK 1,5/4A GN	Green	Push-in connection	1.5 mm²	17.5 A
★3202.2	FRK 1,5/4A BG	Beige	Push-in connection	1.5 mm²	17.5 A
3202.3	FRK 1,5/4A OG	Orange	Push-in connection	1.5 mm²	17.5 A
3202.5	FRK 1,5/4A BU	Blue	Push-in connection	1.5 mm²	17.5 A
3202.8	FRK 1,5/4A YE	Yellow	Push-in connection	1.5 mm²	17.5 A
3202.9	FRK 1,5/4A RD	Red	Push-in connection	1.5 mm²	17.5 A
3210.0	FRK 2,5/2A RB	Red-brown	Push-in connection	2.5 mm²	24 A
3210.1	FRK 2,5/2A GN	Green	Push-in connection	2.5 mm²	24 A
★3210.2	FRK 2,5/2A BG	Beige	Push-in connection	2.5 mm²	24 A
3210.3	FRK 2,5/2A OG	Orange	Push-in connection	2.5 mm²	24 A
3210.4	FRK 2,5/2A BK	Black	Push-in connection	2.5 mm²	24 A
3210.5	FRK 2,5/2A BU	Blue	Push-in connection	2.5 mm²	24 A
3210.7	FRK 2,5/2A WH	White	Push-in connection	2.5 mm²	24 A
3210.8	FRK 2,5/2A YE	Yellow	Push-in connection	2.5 mm²	24 A
3210.9	FRK 2,5/2A RD	Red	Push-in connection	2.5 mm²	24 A
3211.1	FRK 2,5/3A GN	Green	Push-in connection	2.5 mm²	24 A
★3211.2	FRK 2,5/3A BG	Beige	Push-in connection	2.5 mm²	24 A
3211.3	FRK 2,5/3A OG	Orange	Push-in connection	2.5 mm²	24 A
3211.5	FRK 2,5/3A BU	Blue	Push-in connection	2.5 mm²	24 A
3211.8	FRK 2,5/3A YE	Yellow	Push-in connection	2.5 mm²	24 A
3211.9	FRK 2,5/3A RD	Red	Push-in connection	2.5 mm²	24 A
3212.1	FRK 2,5/4A GN	Green	Push-in connection	2.5 mm²	24 A
★3212.2	FRK 2,5/4A BG	Beige	Push-in connection	2.5 mm²	24 A
3212.3	FRK 2,5/4A OG	Orange	Push-in connection	2.5 mm²	24 A
3212.5	FRK 2,5/4A BU	Blue	Push-in connection	2.5 mm²	24 A
3212.8	FRK 2,5/4A YE	Yellow	Push-in connection	2.5 mm²	24 A
3212.9	FRK 2,5/4A RD	Red	Push-in connection	2.5 mm²	24 A
★3216.2	FRKI 6-10/3A BG	Beige	Push-in connection	10 mm²	57 A
3216.3	FRKI 6-10/3A OG	Orange	Push-in connection	10 mm²	57 A
3216.5	FRKI 6-10/3A BU	Blue	Push-in connection	10 mm²	57 A
3216.6	FRKI 6-10/3A GR	Grey	Push-in connection	10 mm²	57 A
3220.1	FRK 4/2A GN	Green	Push-in connection	4 mm²	32 A
★3220.2	FRK 4/2A BG	Beige	Push-in connection	4 mm²	32 A
3220.3	FRK 4/2A OG	Orange	Push-in connection	4 mm²	32 A
3220.4	FRK 4/2A BK	Black	Push-in connection	4 mm²	32 A
3220.5	FRK 4/2A BU	Blue	Push-in connection	4 mm²	32 A
3220.7	FRK 4/2A WH	White	Push-in connection	4 mm²	32 A
3220.8	FRK 4/2A YE	Yellow	Push-in connection	4 mm²	32 A
3220.9	FRK 4/2A RD	Red	Push-in connection	4 mm²	32 A
3221.1	FRK 4/3A GN	Green	Push-in connection	4 mm²	32 A
★3221.2	FRK 4/3A BG	Beige	Push-in connection	4 mm²	32 A
3221.3	FRK 4/3A OG	Orange	Push-in connection	4 mm²	32 A
3221.5	FRK 4/3A BU	Blue	Push-in connection	4 mm²	32 A
3221.8	FRK 4/3A YE	Yellow	Push-in connection	4 mm²	32 A
3221.9	FRK 4/3A RD	Red	Push-in connection	4 mm²	32 A
3222.1	FRK 4/4A GN	Green	Push-in connection	4 mm²	32 A
★3222.2	FRK 4/4A BG	Beige	Push-in connection	4 mm²	32 A
3222.3	FRK 4/4A OG	Orange	Push-in connection	4 mm²	32 A
3222.5	FRK 4/4A BU	Blue	Push-in connection	4 mm²	32 A
3222.8	FRK 4/4A YE	Yellow	Push-in connection	4 mm²	32 A
3222.9	FRK 4/4A RD	Red	Push-in connection	4 mm²	32 A
★3276.2	FRKI 2,5-4 BG	Beige	Push-in connection	4 mm²	32 A
3276.3	FRKI 2,5-4 OG	Orange	Push-in connection	4 mm²	32 A
3276.5	FRKI 2,5-4 BU	Blue	Push-in connection	4 mm²	32 A
★3277.2	FRKI 6-10 BG	Beige	Push-in connection	10 mm²	57 A
3277.3	FRKI 6-10 OG	Orange	Push-in connection	10 mm²	57 A
3277.5	FRKI 6-10 BU	Blue	Push-in connection	10 mm²	57 A
3277.6	FRKI 6-10 GR	Grey	Push-in connection	10 mm²	57 A
3277.9	FRKI 6-10 RD	Red	Push-in connection	10 mm²	57 A
★3278.2	FRKI 16/2A BG	Beige	Push-in connection	16 mm²	76 A
3278.3	FRKI 16/2A OG	Orange	Push-in connection	16 mm²	76 A
3278.5	FRKI 16/2A BU	Blue	Push-in connection	16 mm²	76 A
★3294.2	FRK 16/2A BG	Beige	Push-in connection	16 mm²	76 A
3294.3	FRK 16/2A OG	Orange	Push-in connection	16 mm²	76 A
3294.4	FRK 16/2A BK	Black	Push-in connection	16 mm²	76 A
3294.5	FRK 16/2A BU	Blue	Push-in connection	16 mm²	76 A
3294.6	FRK 16/2A GR	Green	Push-in connection	16 mm²	76 A
