Double-decker terminal blocks with electronic components
Doppelstock-Reihenklemmen mit elektronischen Bauteilen · Double-decker terminal blocks with electronic components
Type
19 / 19Featured models from each series. Key articles are also marked ★ in the table below.

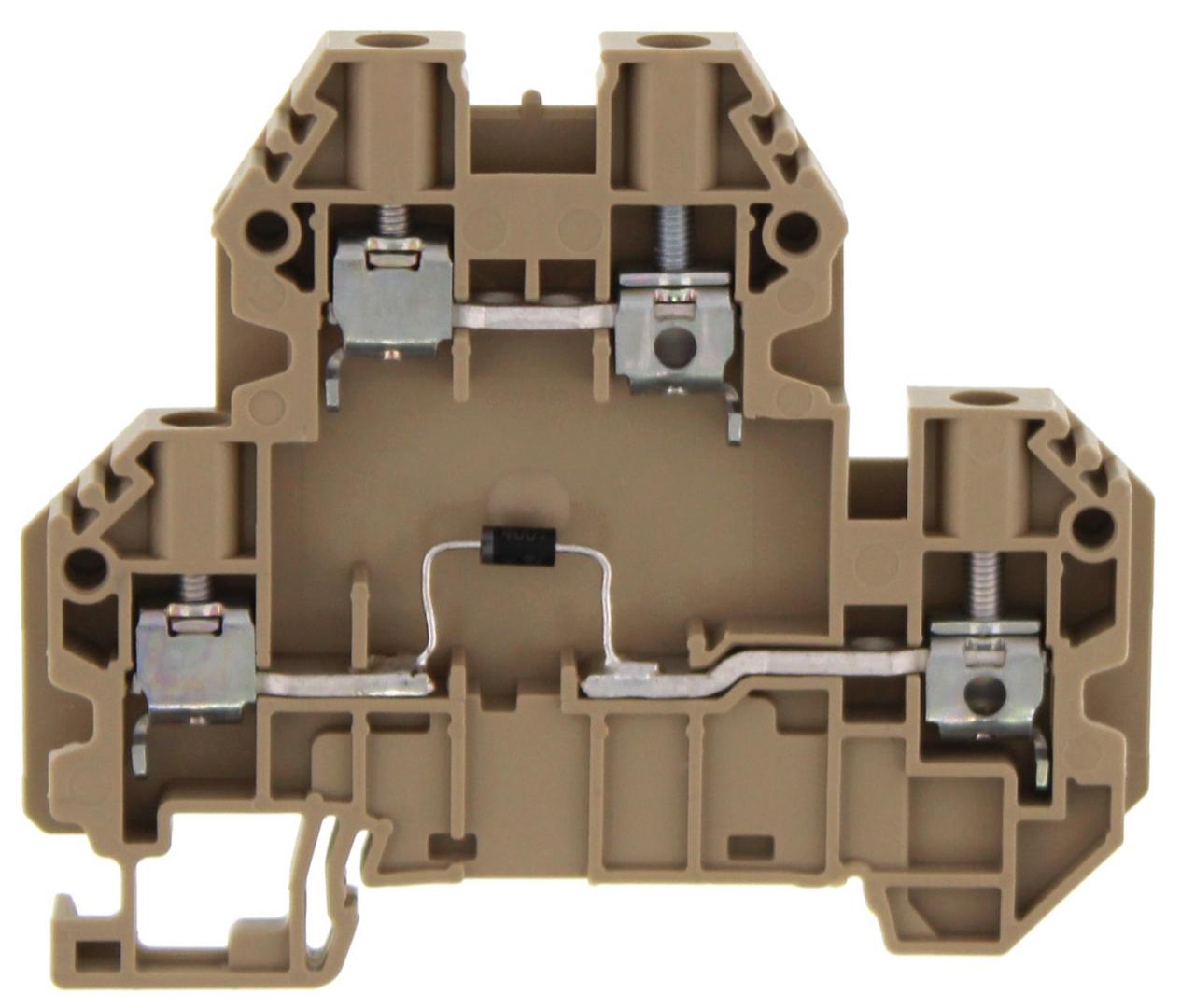

17561.2
SRKD 4/D0 BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²

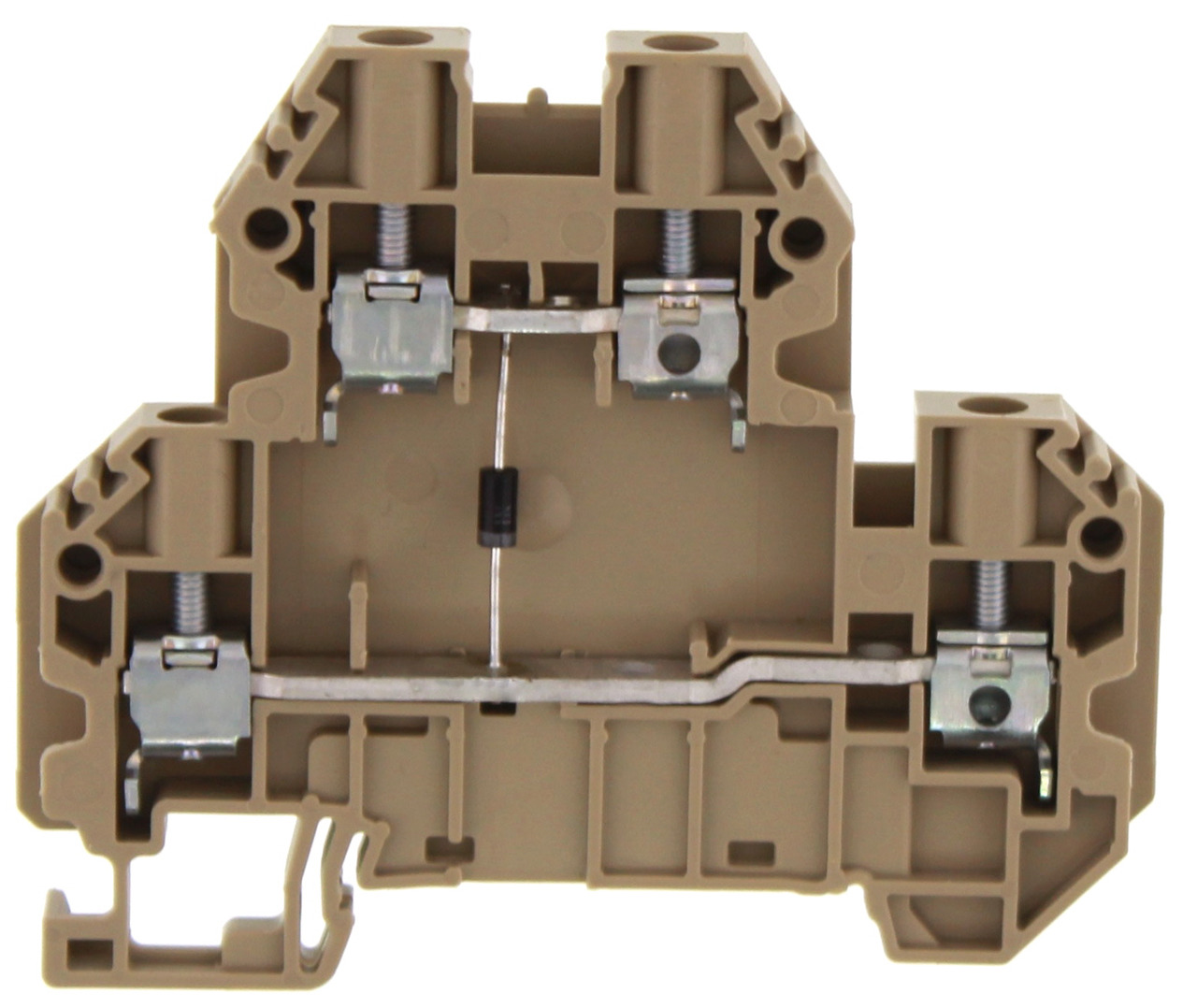

17562.2
SRKD 4/D1 BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²

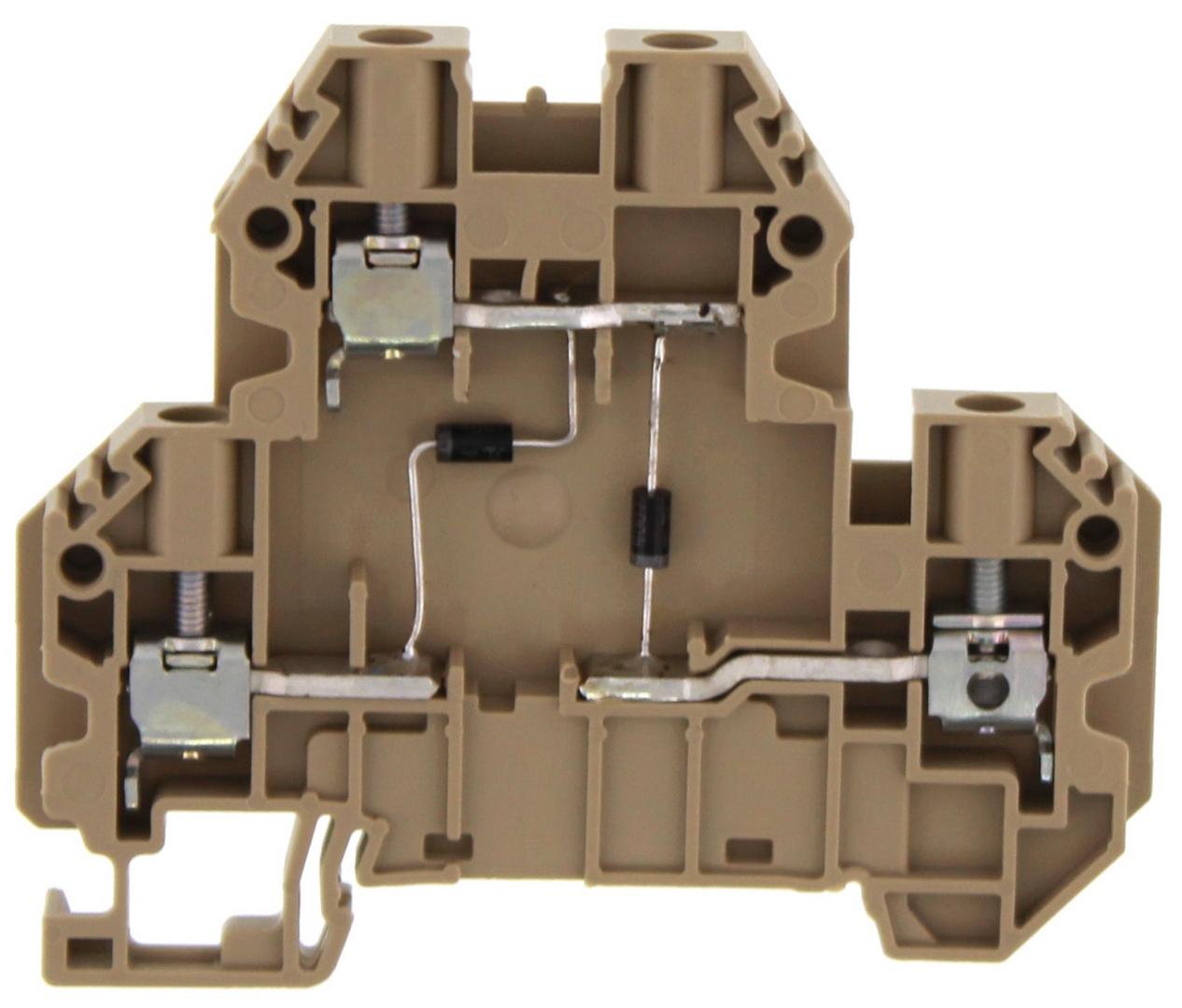

17564.2
SRKD 4/D3 BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²

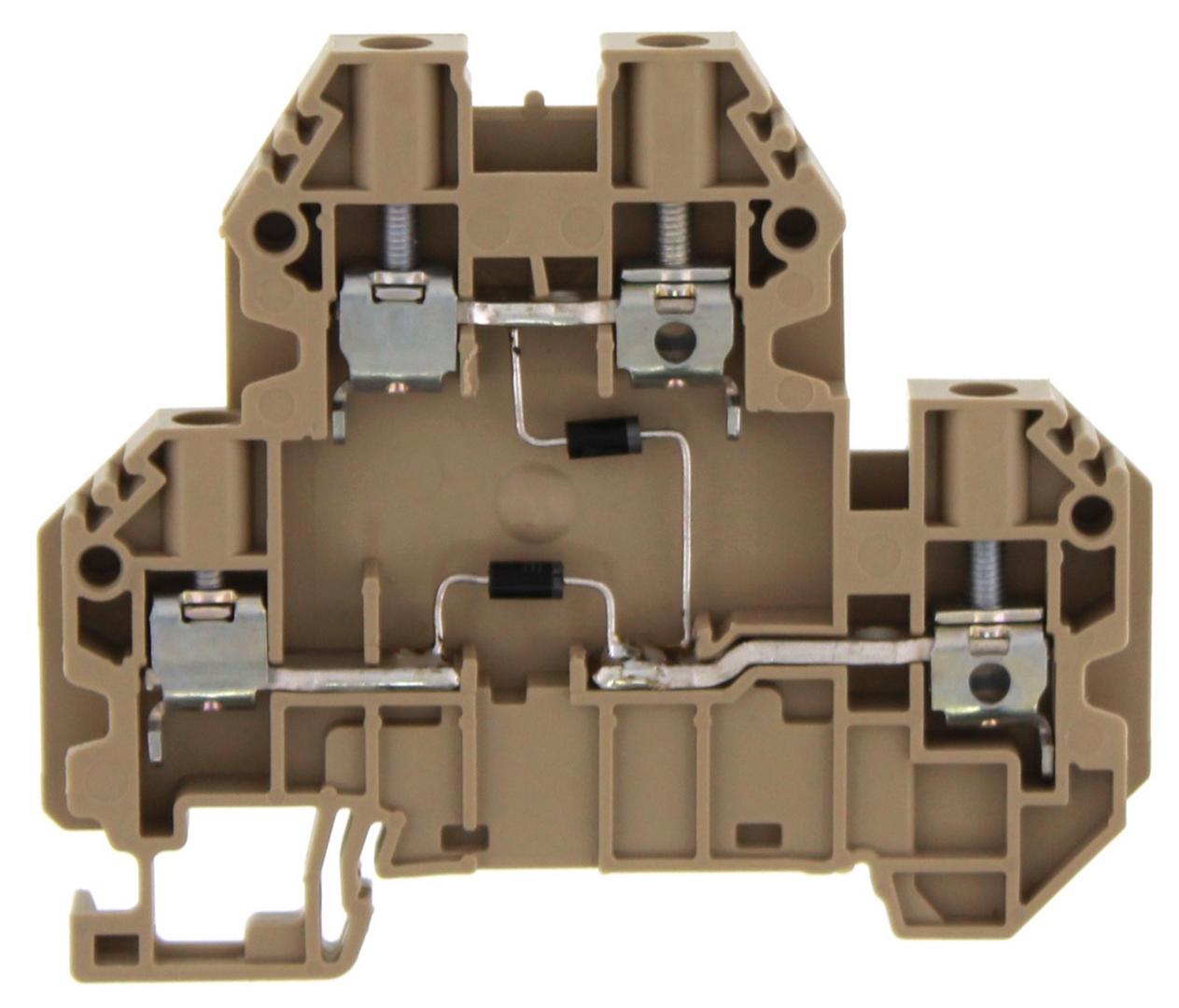

17566.2
SRKD 4/D5 BG
Colour: Beige · Connection principle: Screw connection · Rated cross-section: 4 mm²
Specification table
19| Article no. | Type | Colour | Connection principle | Rated cross-section | Width |
|---|---|---|---|---|---|
| 17561.2 | SRKD 4/D0 BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17562.2 | SRKD 4/D1 BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17563.2 | SRKD 4/D2 BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17564.2 | SRKD 4/D3 BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17565.2 | SRKD 4/D4 BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17566.2 | SRKD 4/D5 BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17567.2 | SRKD 4/D6 BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17568.2 | SRKD 4/RD1 BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17569.2 | SRKD 4/RD5 BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17570.2 | SRKD 4/LED1(RD)/24V DC BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17571.2 | SRKD 4/LED1(GN)/24V DC BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17572.2 | SRKD 4/LED2(RD)/24V DC BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17573.2 | SRKD 4/LED2(GN)/24V DC BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17574.2 | SRKD 4/LED3(RD)/24V DC BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17575.2 | SRKD 4/LED3(GN)/24V DC BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17576.2 | SRKD 4/LED4(RD)/24V DC BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17577.2 | SRKD 4/LED4(GN)/24V DC BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17578.2 | SRKD 4/LED5(RD)/24V AC BG | Beige | Screw connection | 4 mm² | 6.1 mm |
| 17579.2 | SRKD 4/LED5(RD)/230V AC BG | Beige | Screw connection | 4 mm² | 6.1 mm |
