Three-pin initiator clamps
Dreistock-Initiatorenklemmen · Three-pin initiator clamps
Type
14 / 14Featured models from each series. Key articles are also marked ★ in the table below.
1708.2
ZIKD 2,5 Ex BG
Colour: Beige · Connection principle: Tension-spring connection · Rated cross-section: 2.5 mm²
3591.2
ZIKD 2,5/SV BG
Colour: Beige · Connection principle: Tension-spring connection · Rated cross-section: 2.5 mm²
3592.2
ZIKD 2,5/PE/L/L BG
Colour: Beige · Connection principle: Tension-spring connection · Rated cross-section: 2.5 mm²

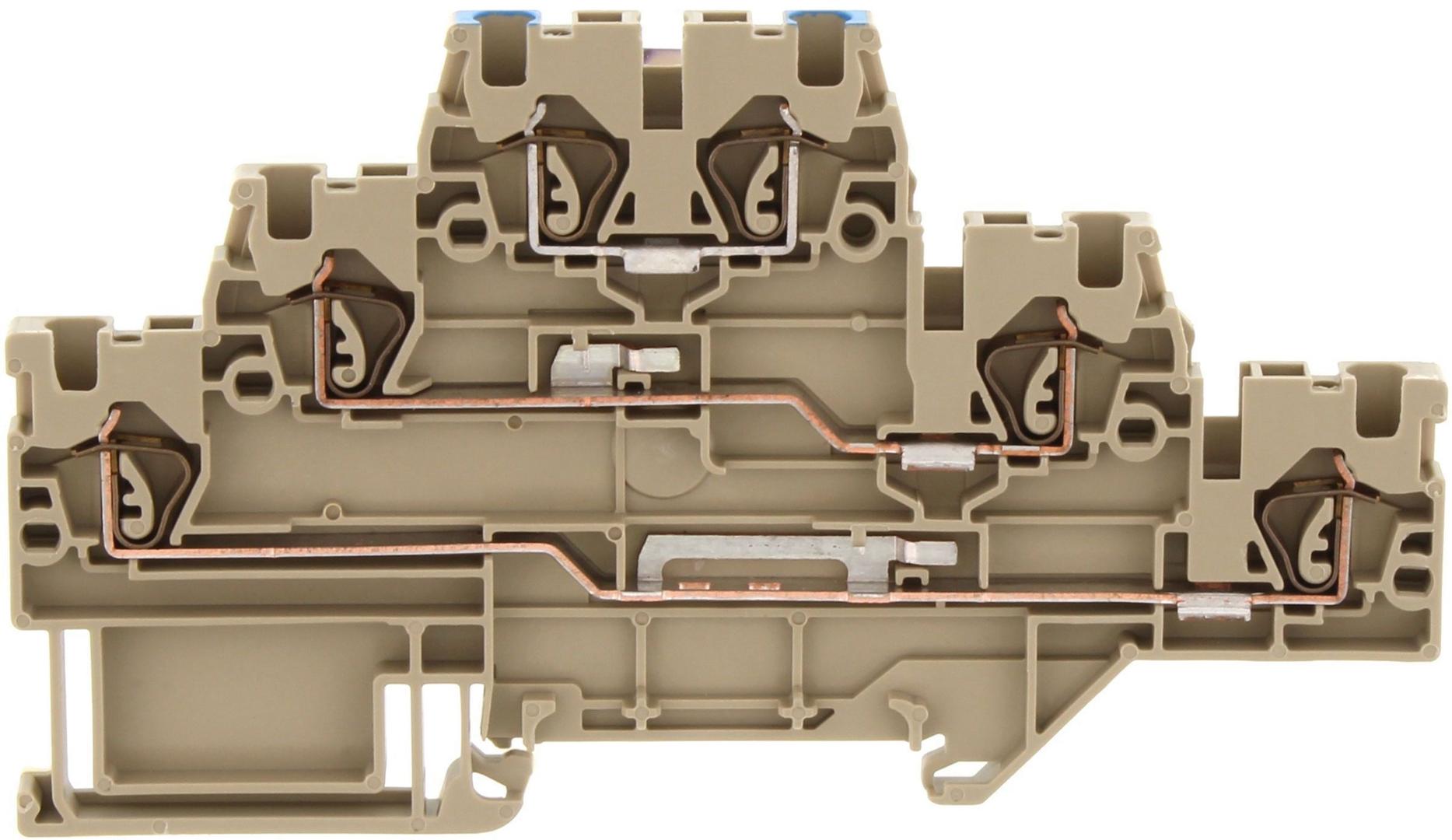

17037.2
ZIKD 2,5/L-L-N BG
Colour: Beige · Connection principle: Tension-spring connection · Rated cross-section: 2.5 mm²
Specification table
14| Article no. | Type | Colour | Connection principle | Rated cross-section | Rated current |
|---|---|---|---|---|---|
| ★1708.2 | ZIKD 2,5 Ex BG | Beige | Tension-spring connection | 2.5 mm² | 24 A |
| 1708.5 | ZIKD 2,5 Ex BU | Blue | Tension-spring connection | 2.5 mm² | 24 A |
| 3590.1 | ZIKD 2,5 GN | Green | Tension-spring connection | 2.5 mm² | 24 A |
| ★3590.2 | ZIKD 2,5 BG | Beige | Tension-spring connection | 2.5 mm² | 24 A |
| 3590.3 | ZIKD 2,5 OG | Orange | Tension-spring connection | 2.5 mm² | 24 A |
| 3590.5 | ZIKD 2,5 BU | Blue | Tension-spring connection | 2.5 mm² | 24 A |
| ★3591.2 | ZIKD 2,5/SV BG | Beige | Tension-spring connection | 2.5 mm² | 24 A |
| 3591.3 | ZIKD 2,5/SV OG | Orange | Tension-spring connection | 2.5 mm² | 24 A |
| 3591.5 | ZIKD 2,5/SV BU | Blue | Tension-spring connection | 2.5 mm² | 24 A |
| ★3592.2 | ZIKD 2,5/PE/L/L BG | Beige | Tension-spring connection | 2.5 mm² | 24 A |
| 3592.5 | ZIKD 2,5/PE/N/N BU | Blue | Tension-spring connection | 2.5 mm² | 24 A |
| 3593.2 | ZIKD 2,5/SV/PE GNYE | Green-yellow | Tension-spring connection | 2.5 mm² | – |
| 3594.2 | ZIKD 2,5/PE/L/N BG | Beige | Tension-spring connection | 2.5 mm² | 24 A |
| 17037.2 | ZIKD 2,5/L-L-N BG | Beige | Tension-spring connection | 2.5 mm² | 24 A |
