继电器技术

Relaistechnik

产品系列

全部型号

400+ / 657

以下为各系列的重点型号，★ 标注的参数表里也可按重点筛选。

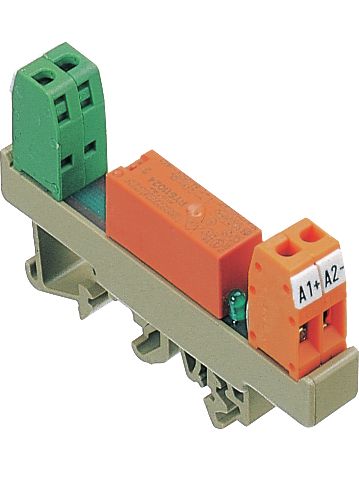

5400.2 RM-SR/1S/24V DC 连接方式螺钉连接 · 宽度 11.2 mm

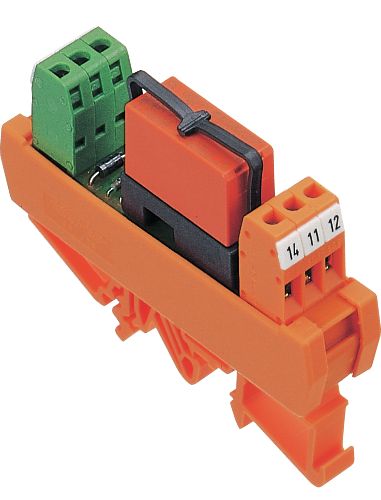

5450.2 RM 1-1W/24V DC 连接方式螺钉连接 · 宽度 20 mm

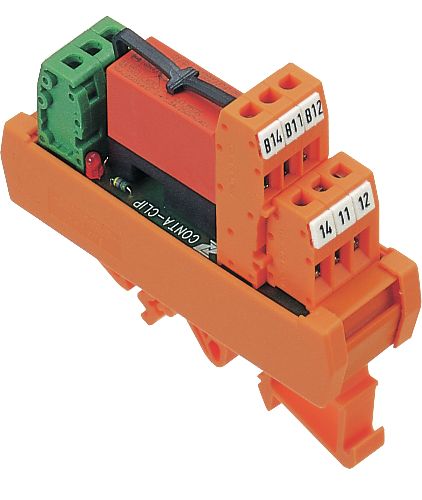

5550.2 RM1/2W/24V- 连接方式螺钉连接 · 宽度 26 mm

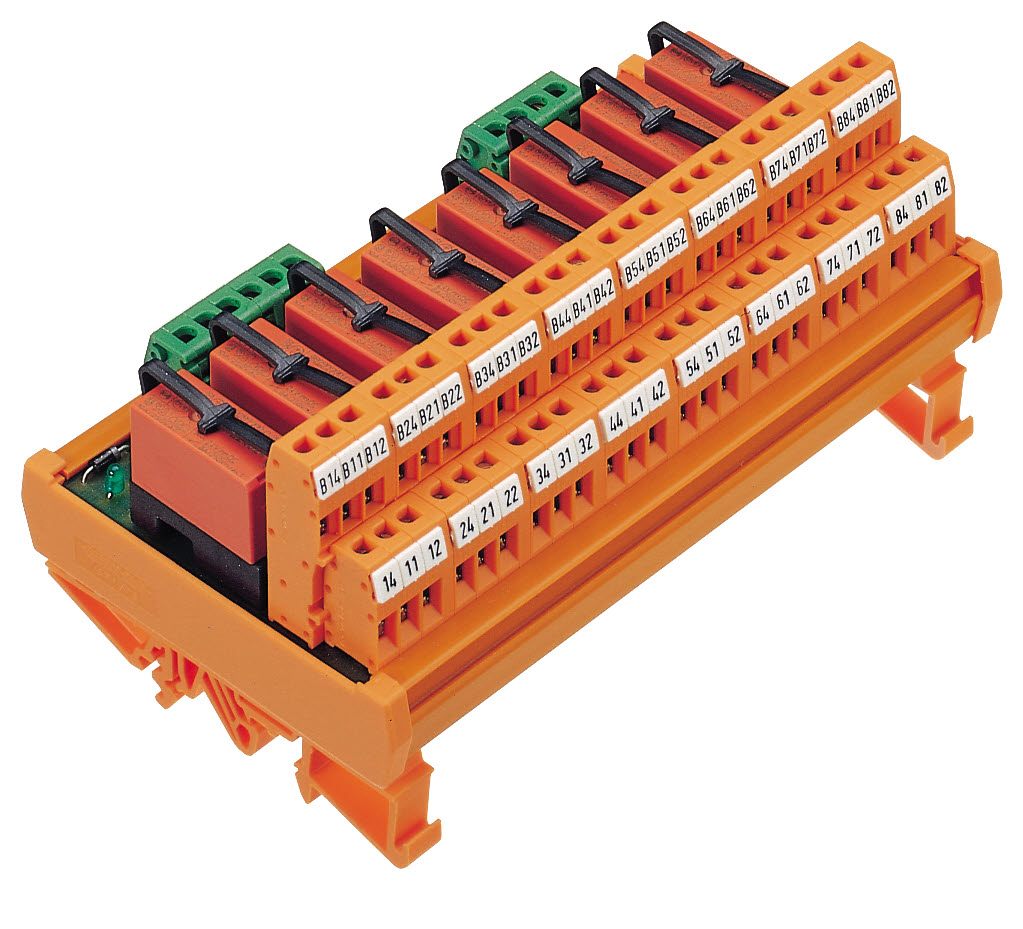

5566.2 RIM2/2W/24V+ 连接方式螺钉连接 · 宽度 44 mm

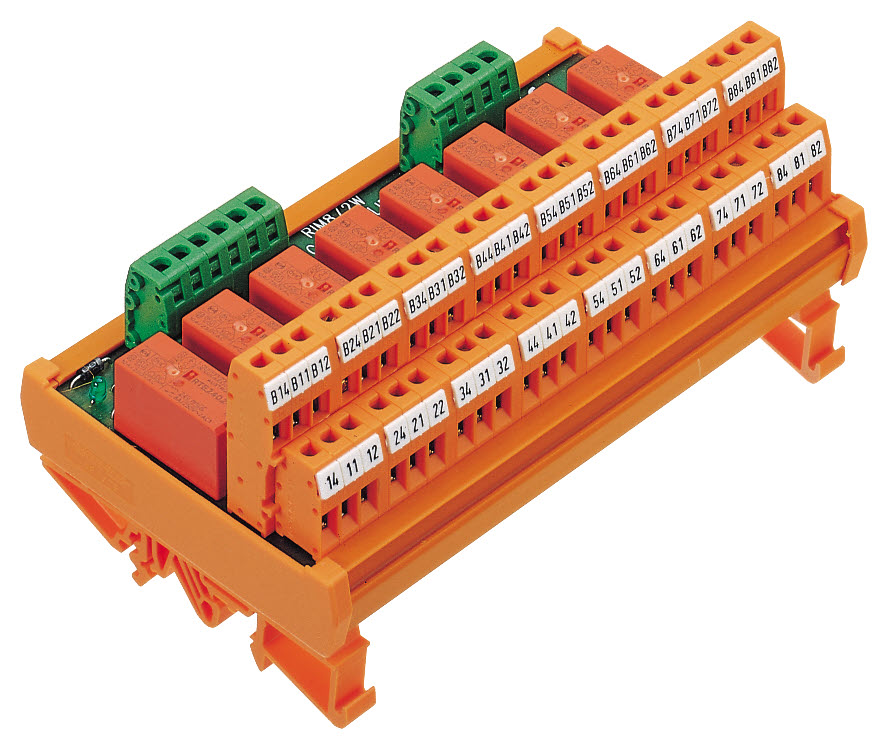

5567.2 RIMD2/2W/24V+ 连接方式螺钉连接 · 宽度 44 mm

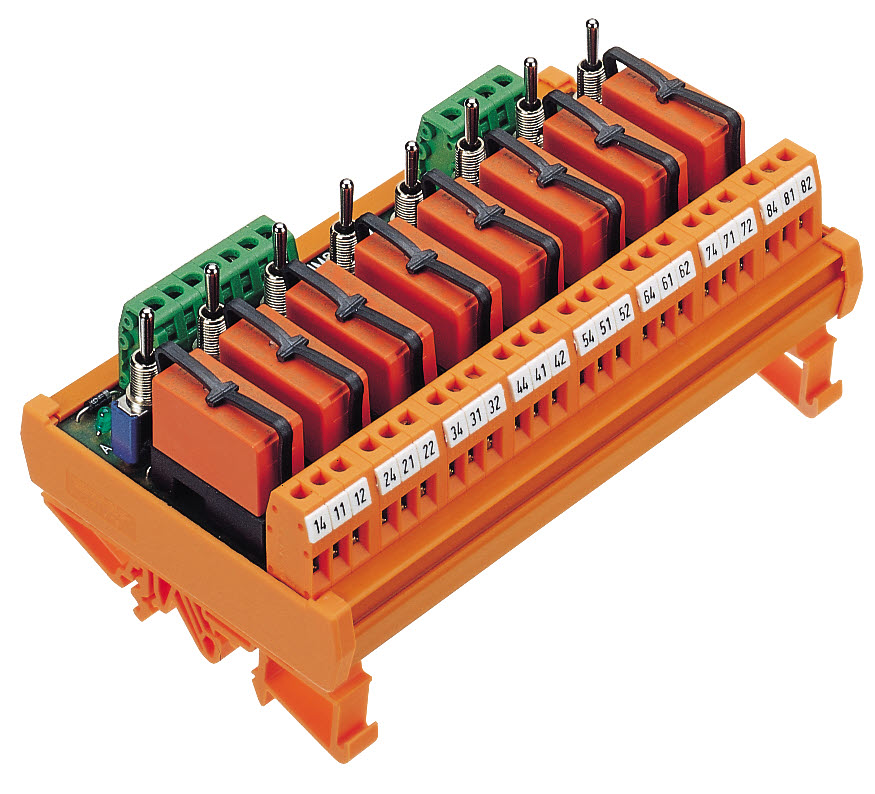

5900.3 RIM2S/1W/24V+ 连接方式螺钉连接 · 宽度 44 mm

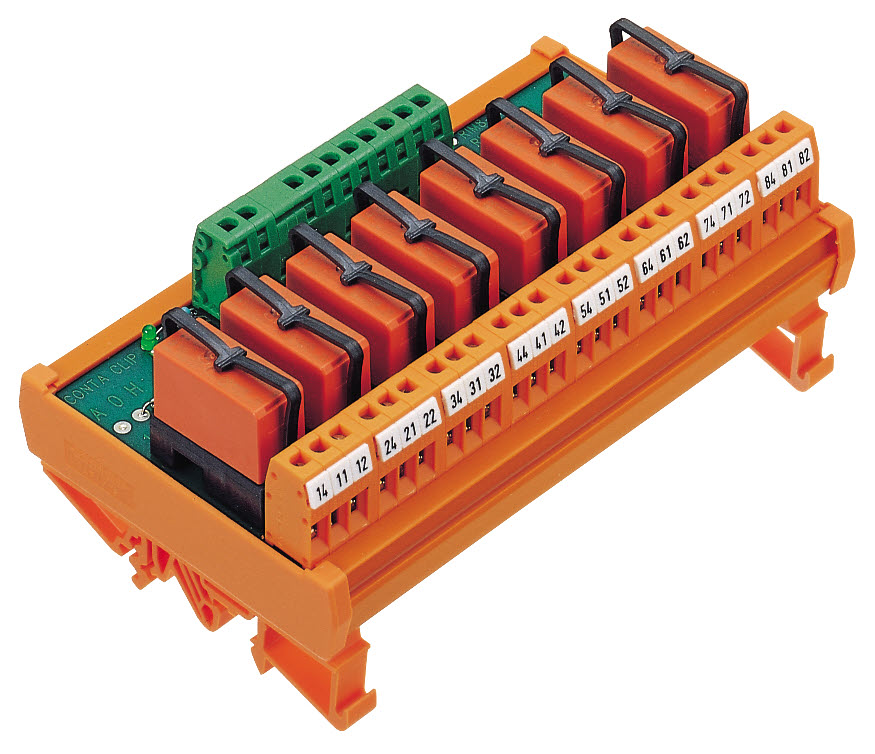

6012.2 RIM8-16A/1W/24V+ 连接方式螺钉连接 · 宽度 148 mm

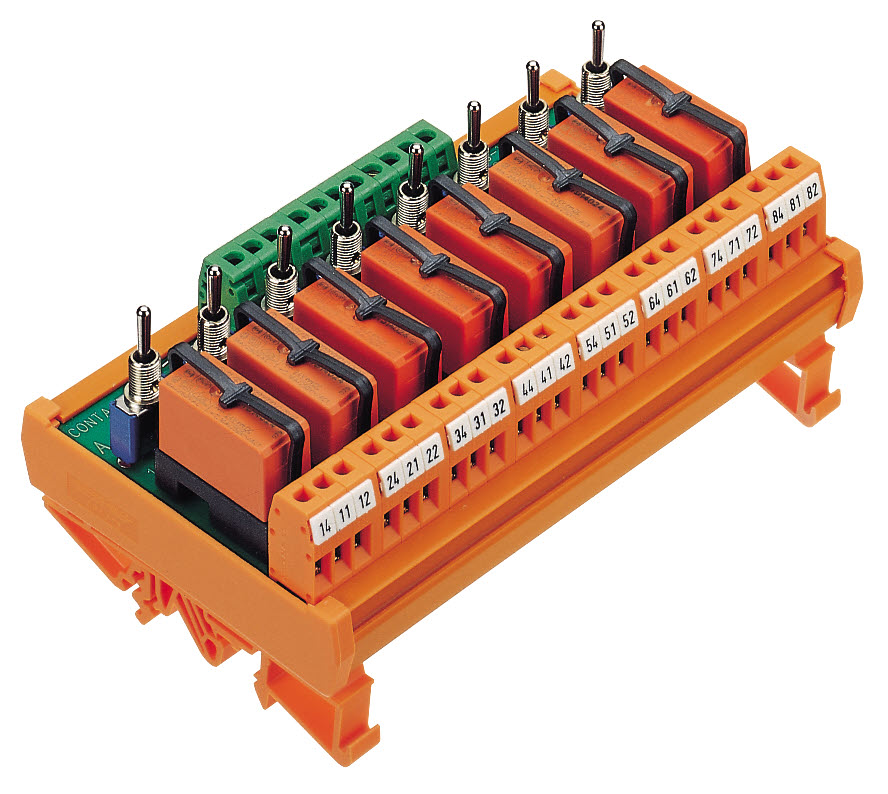

6013.2 RIM8S-16A/1W/24V+ 连接方式螺钉连接 · 宽度 148 mm

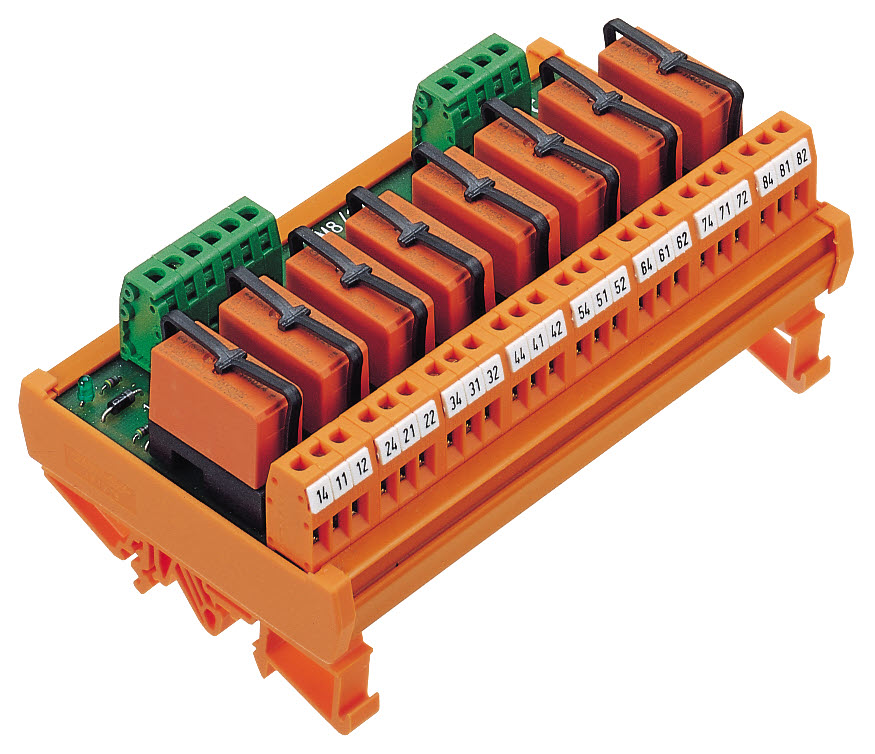

6021.2 RIM2/1W/24V+ 连接方式螺钉连接 · 宽度 41 mm

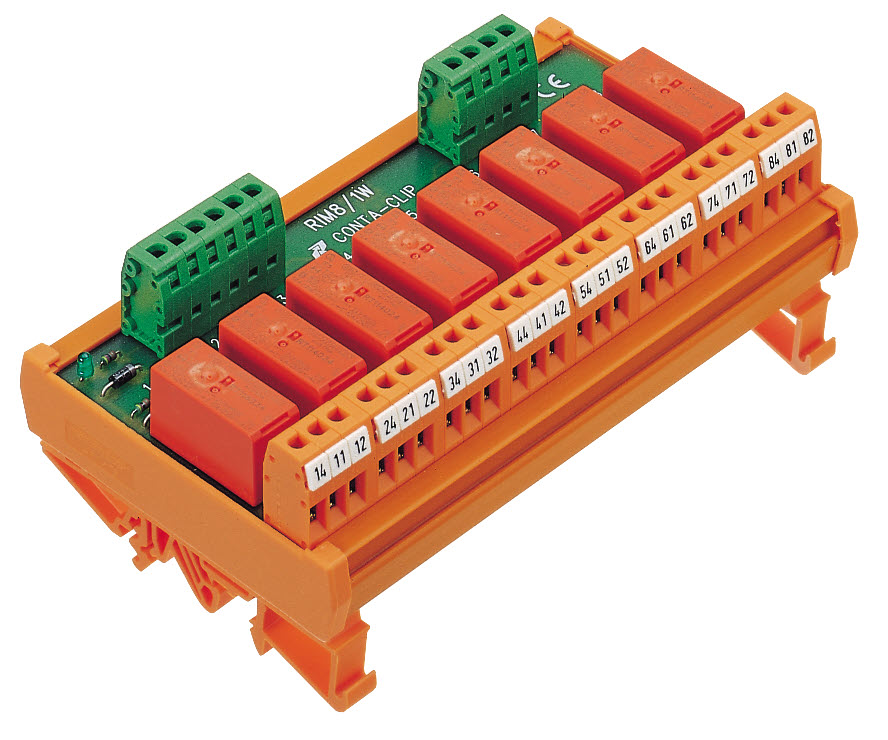

6030.2 RIMD2/1W/24V+ 连接方式螺钉连接 · 宽度 41 mm

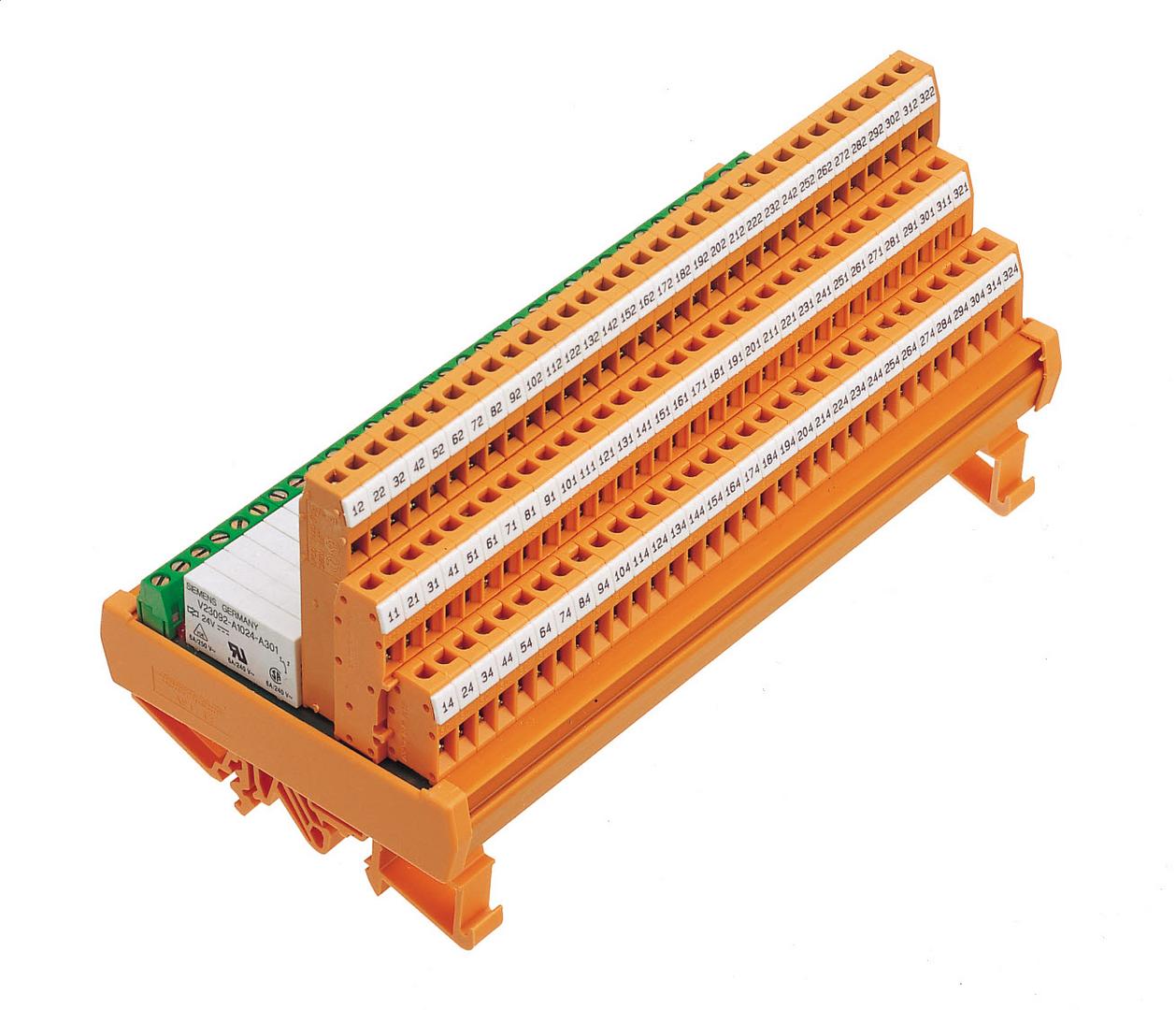

15006.2 RIMXD8/1W/12V+

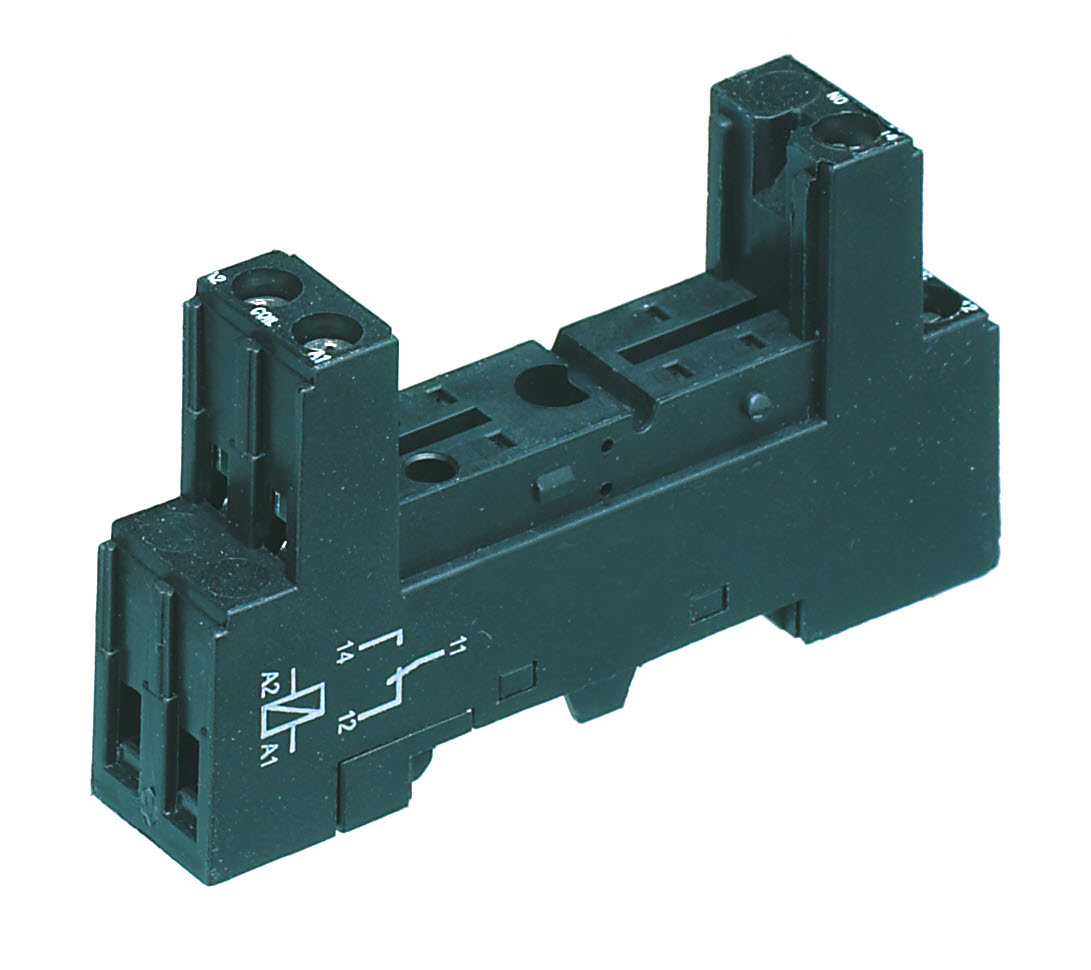

15135.2 PRS 1 连接方式螺钉连接 · 宽度 15.8 mm · 防护等级 IP20

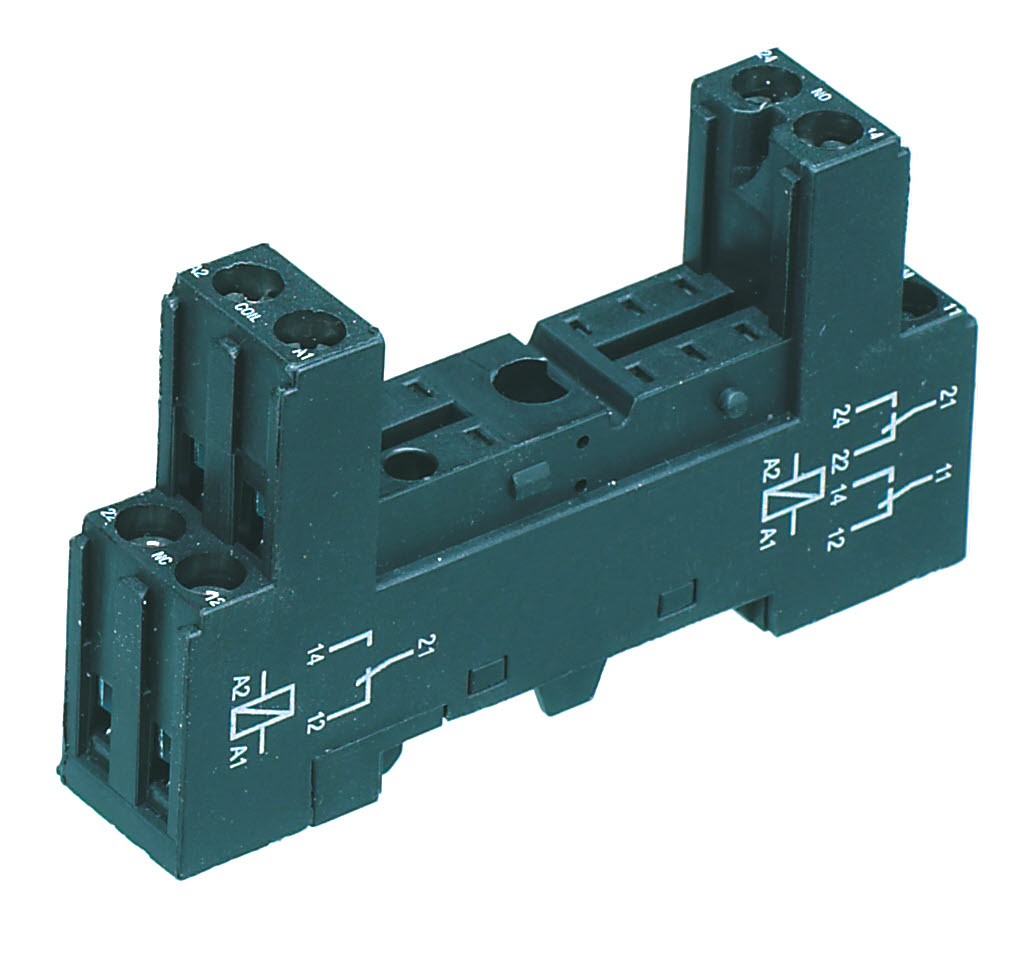

15136.2 PRS 2 颜色黑色 · 连接方式螺钉连接 · 宽度 15.7 mm

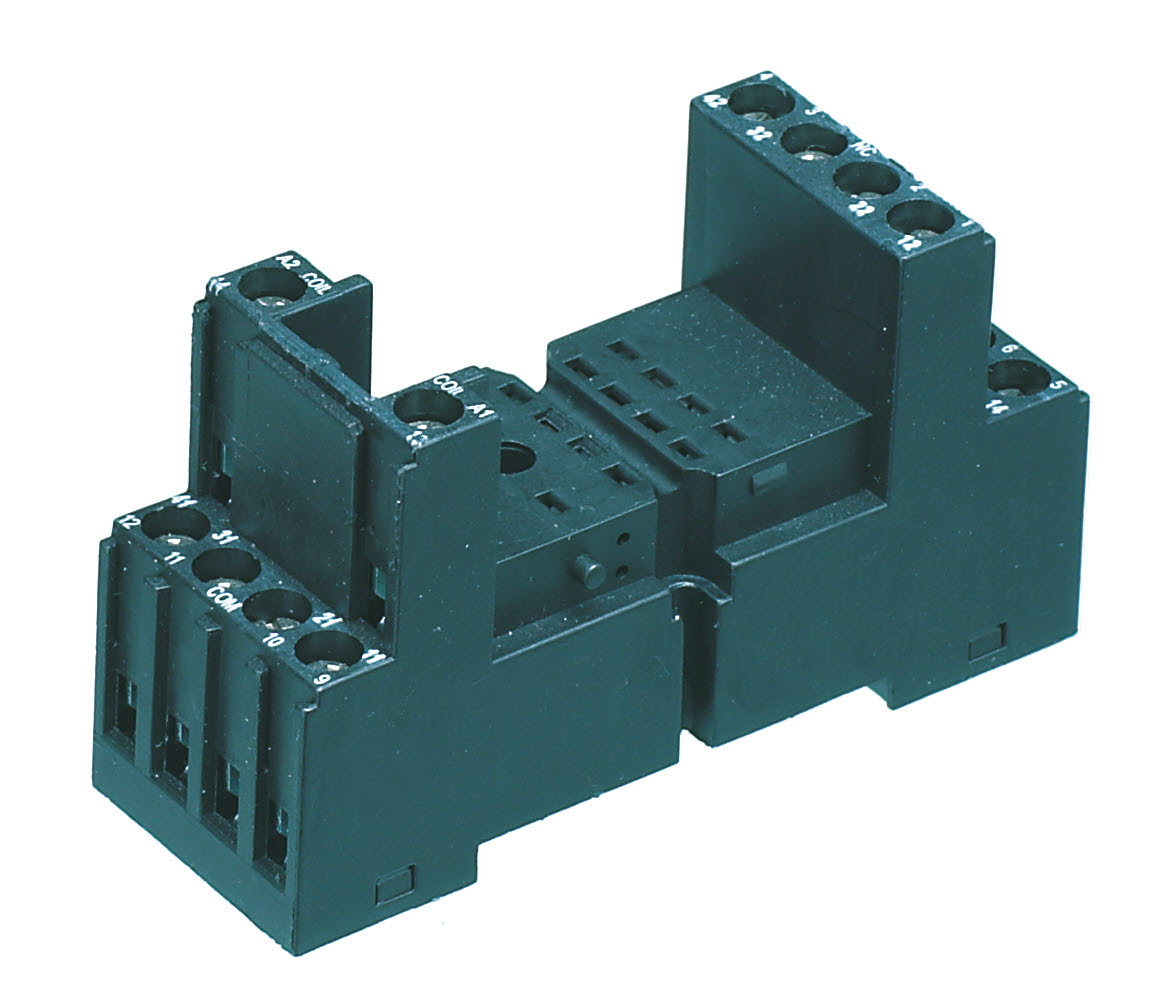

15137.2 PRS 4 连接方式螺钉连接 · 宽度 27.1 mm · 防护等级 IP20

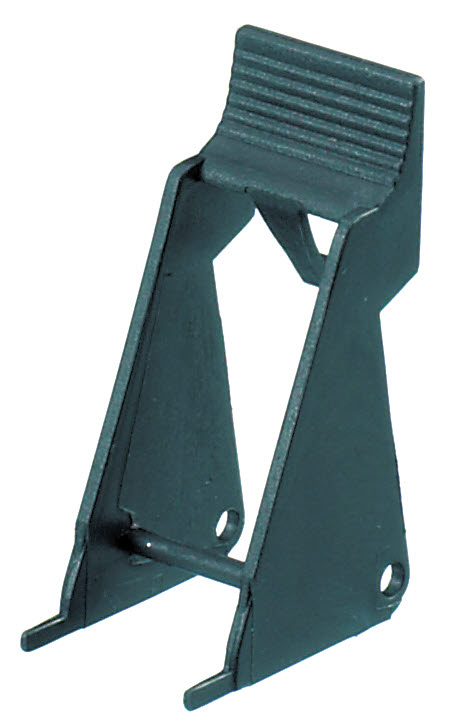

15138.2 PRS C1/2

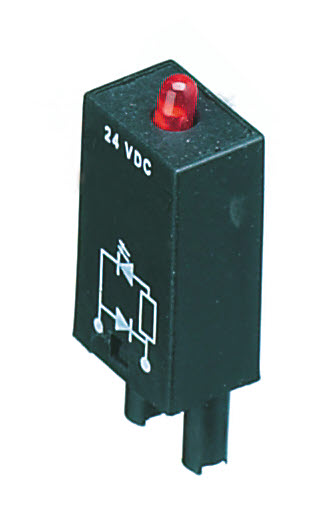

15141.2 PRS LED(RD) 24V DC

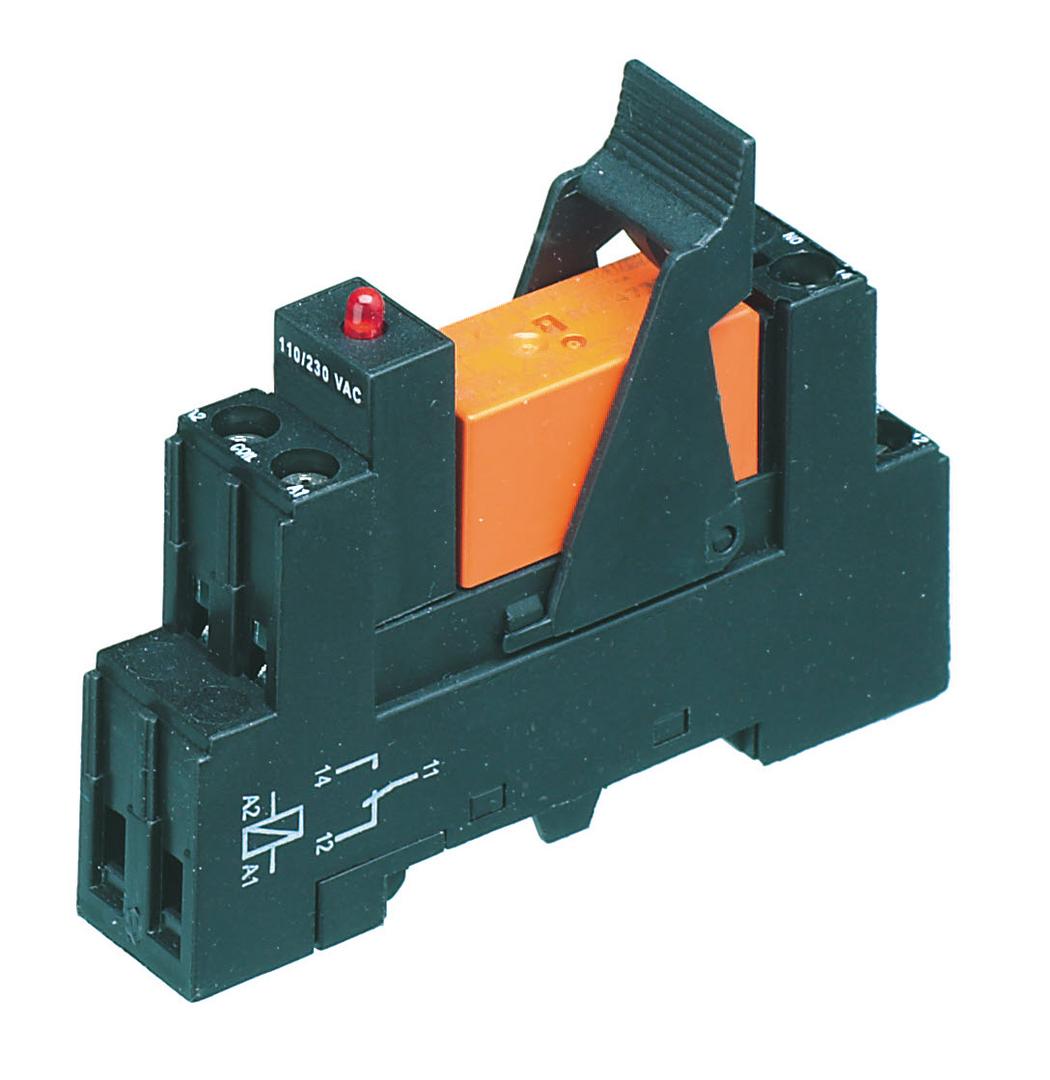

15163.2 PRSU 1/12V DC 连接方式螺钉连接 · 宽度 15.7 mm · 防护等级 IP20

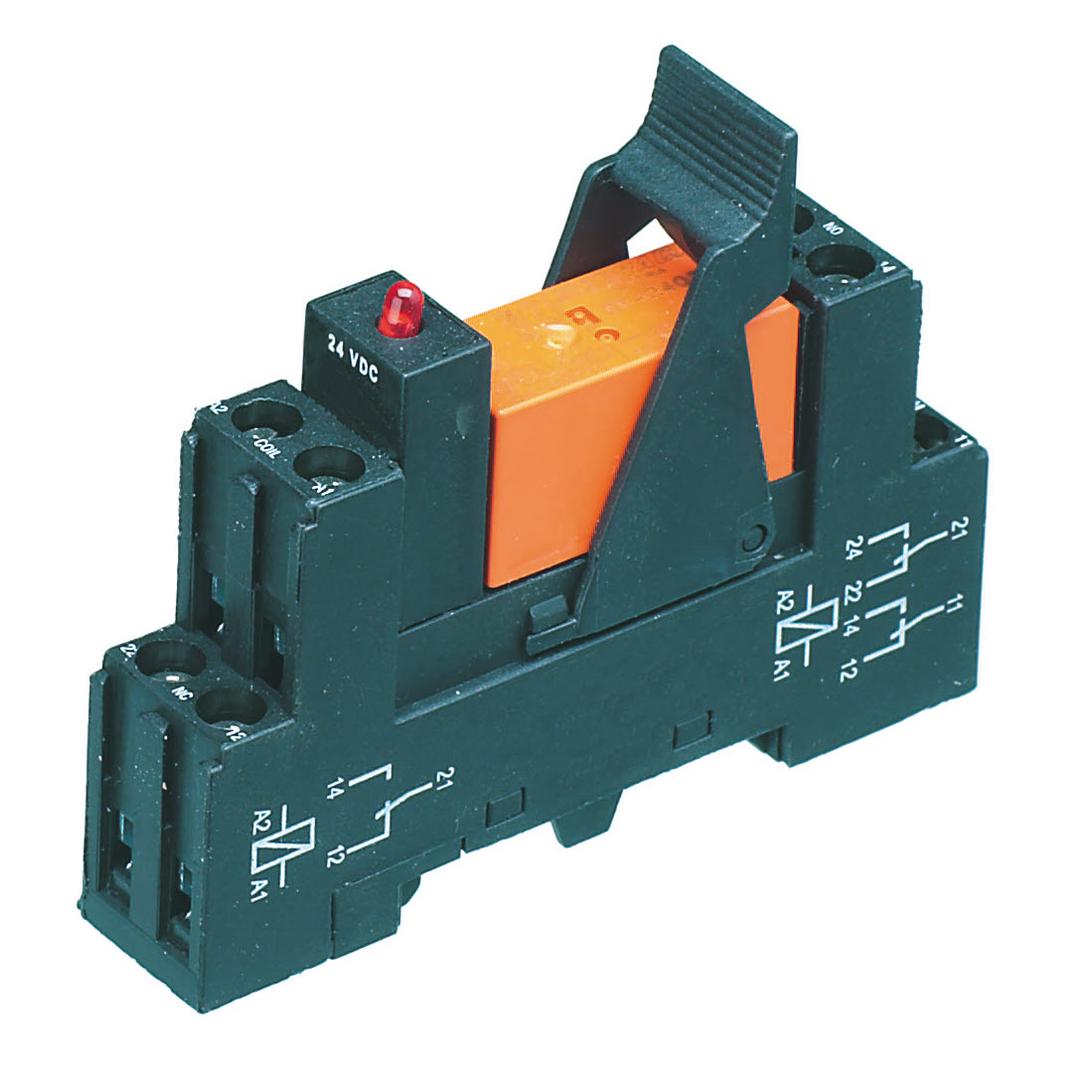

15165.2 PRSU 2/12V DC 连接方式螺钉连接 · 宽度 15.6 mm · 防护等级 IP20

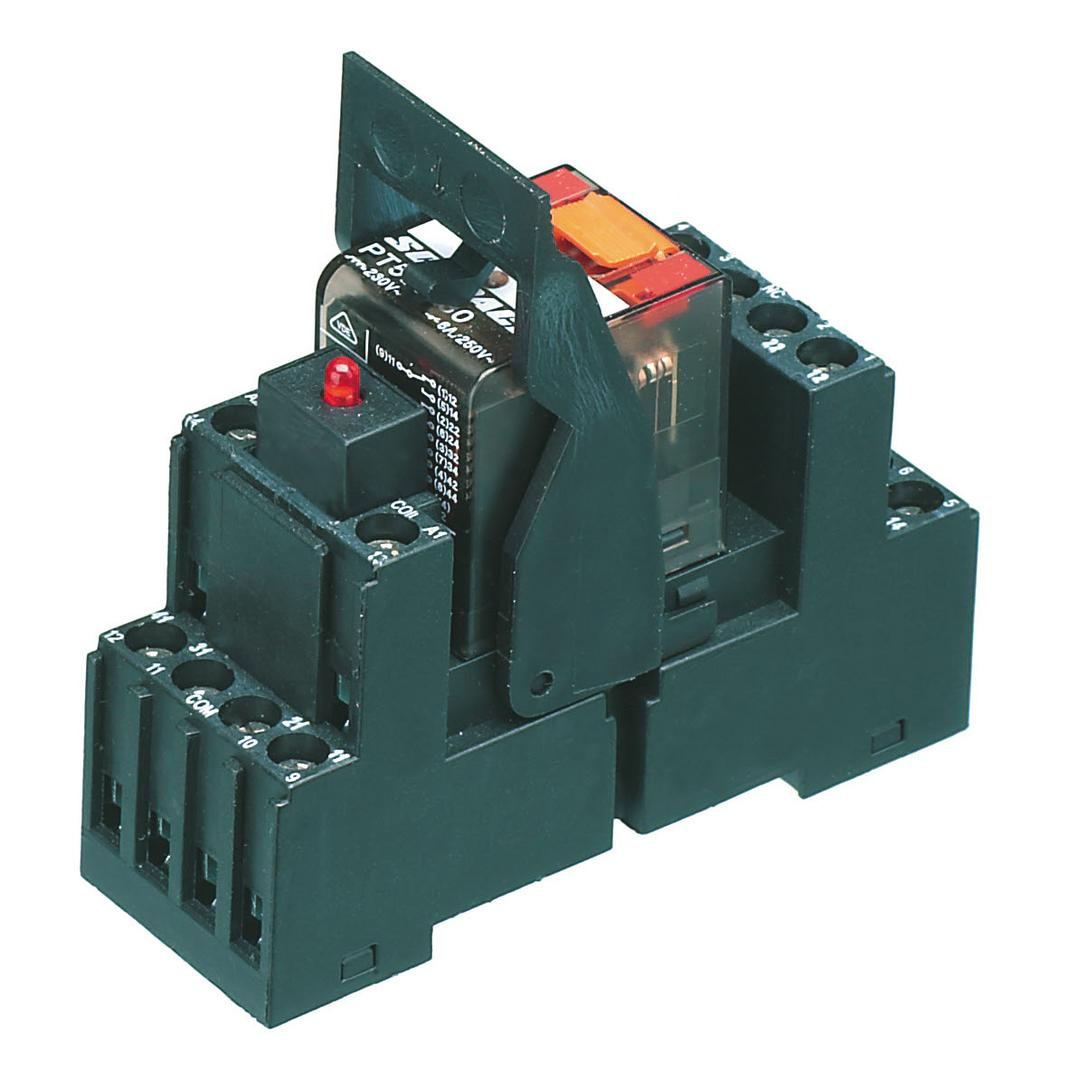

15167.2 PRSU 4/12V DC 连接方式螺钉连接 · 宽度 27.1 mm · 防护等级 IP20

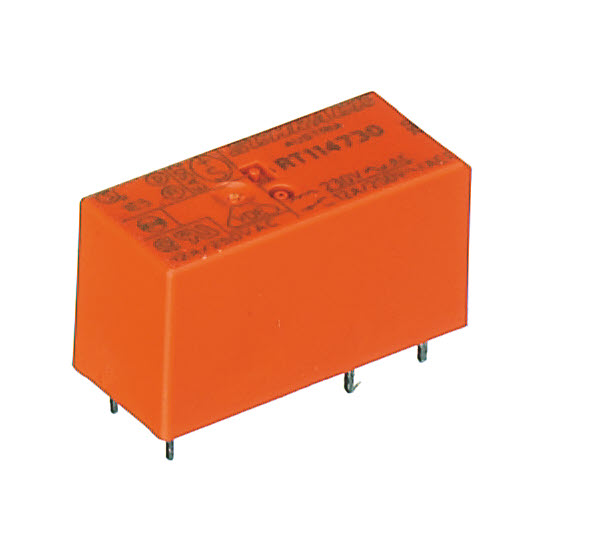

15228.2 PRS 1/115V AC 宽度 12.7 mm · 防护等级 RTII (flux proof)

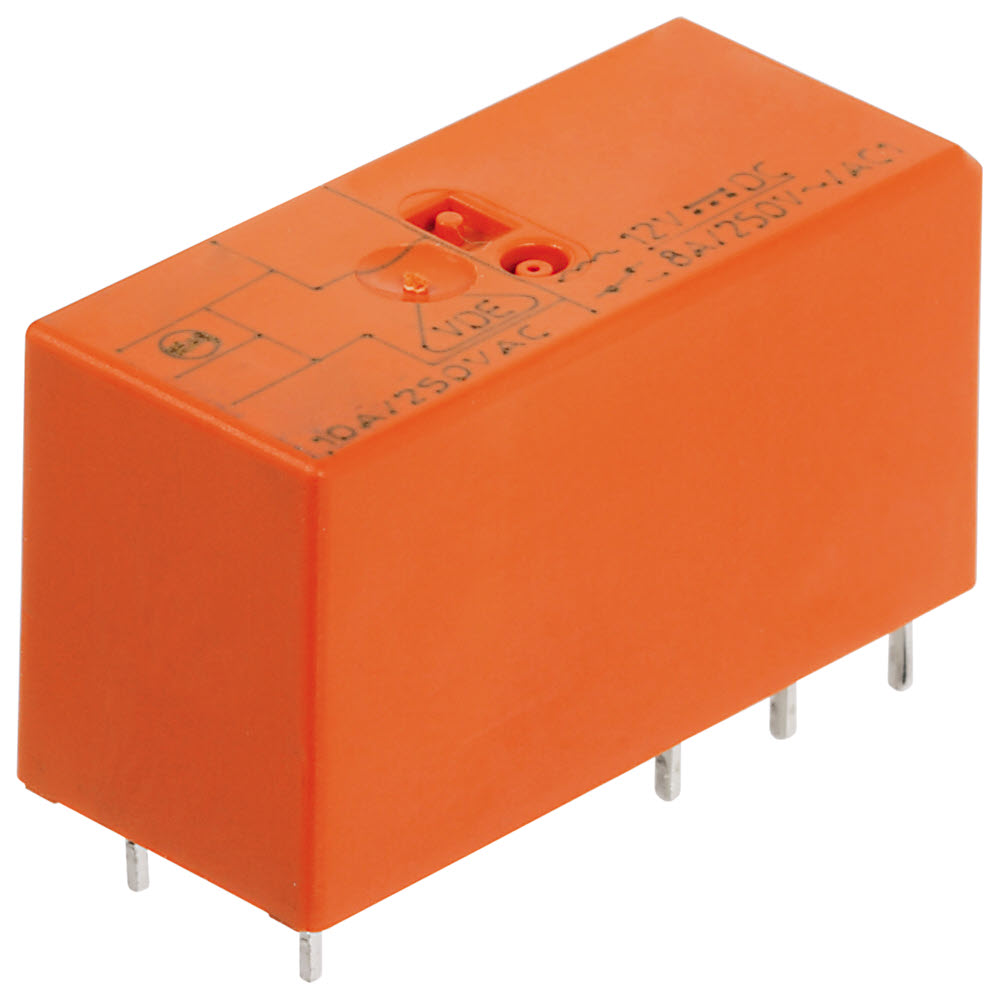

15229.2 PRS 2/115V AC 宽度 12.7 mm · 防护等级 RTII

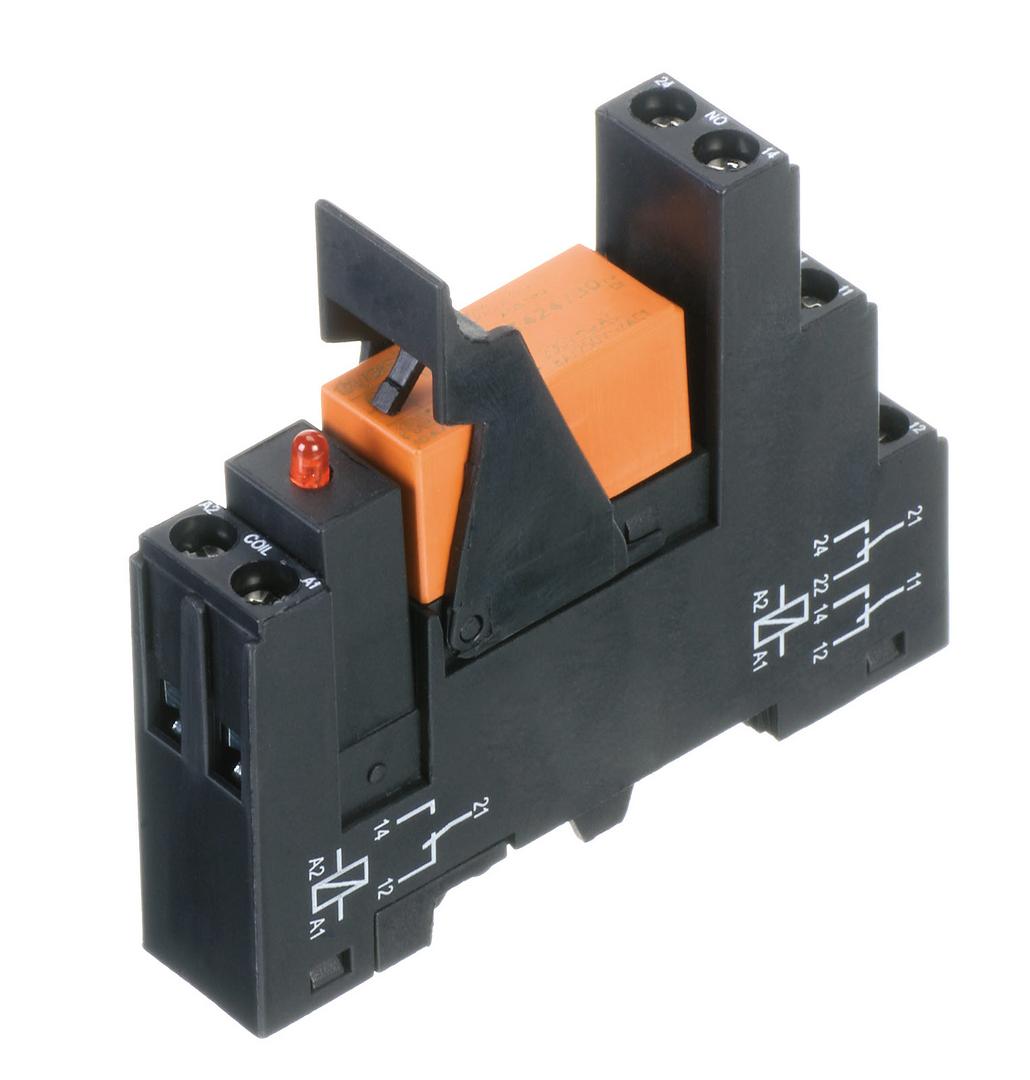

15233.2 PRSU 2G/24V DC 颜色黑色 · 连接方式螺钉连接 · 宽度 16.6 mm

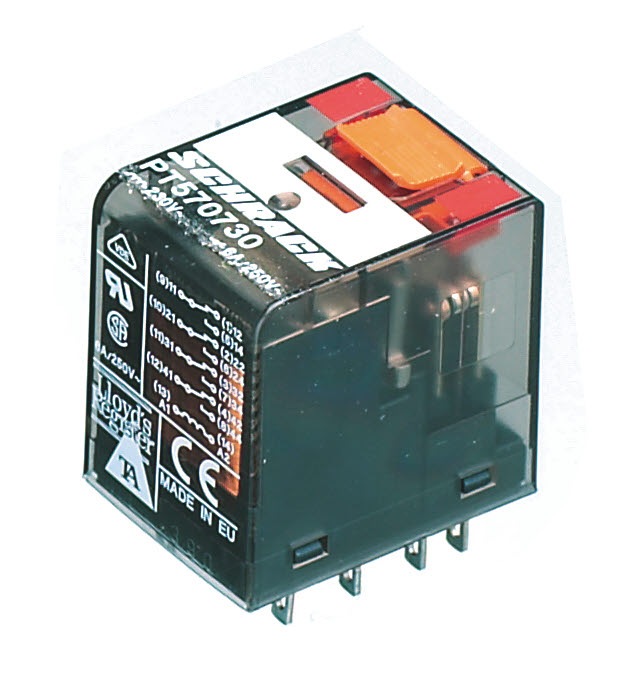

15257.2 PRS 4/115V AC 宽度 22.5 mm · 防护等级 RTII (flux proof)

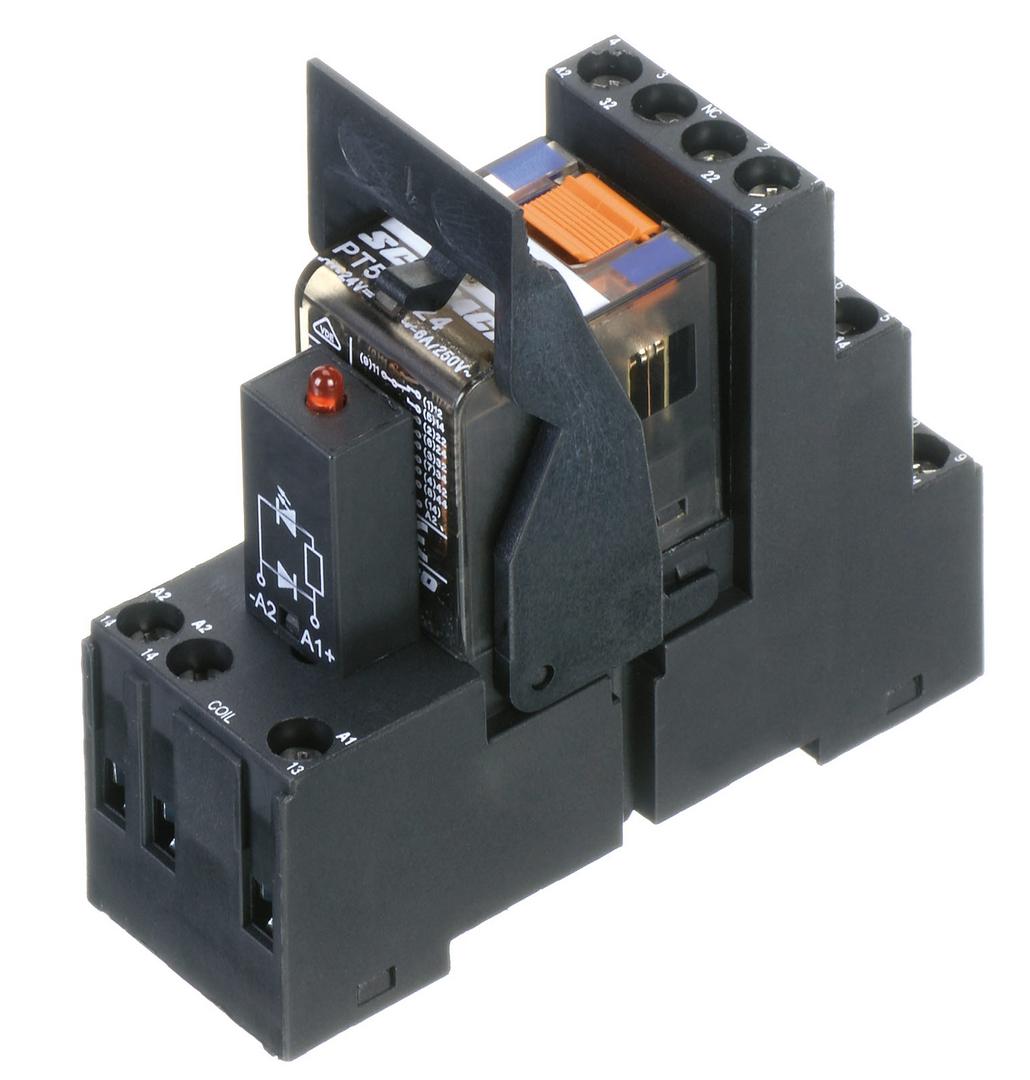

15332.2 PRSU 4G/24V DC 连接方式螺钉连接 · 宽度 27.1 mm · 防护等级 IP20

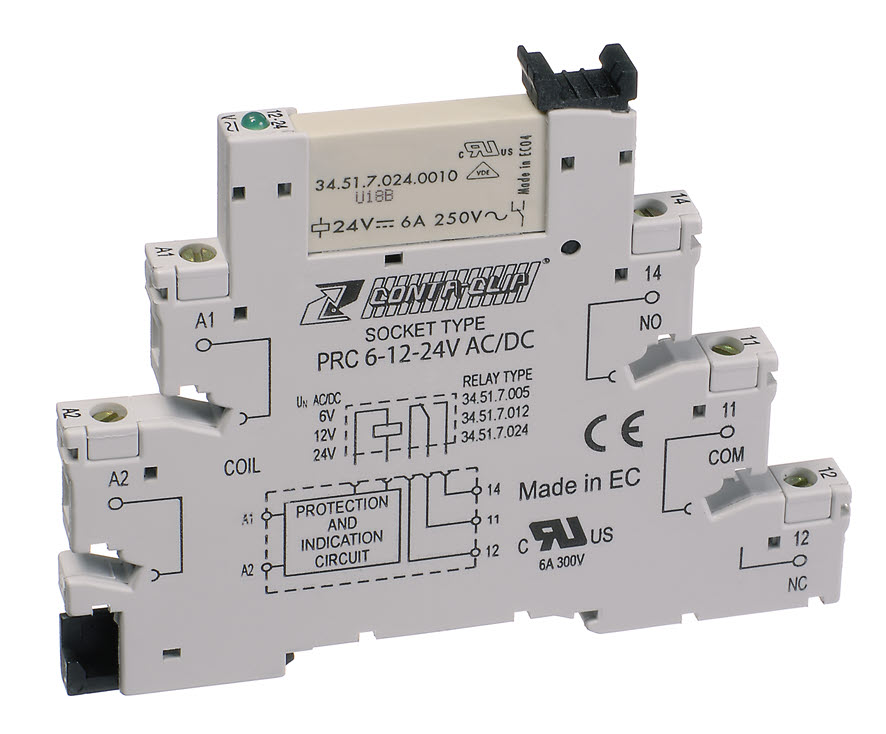

15488.2 PRC 6-12-24V AC/DC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

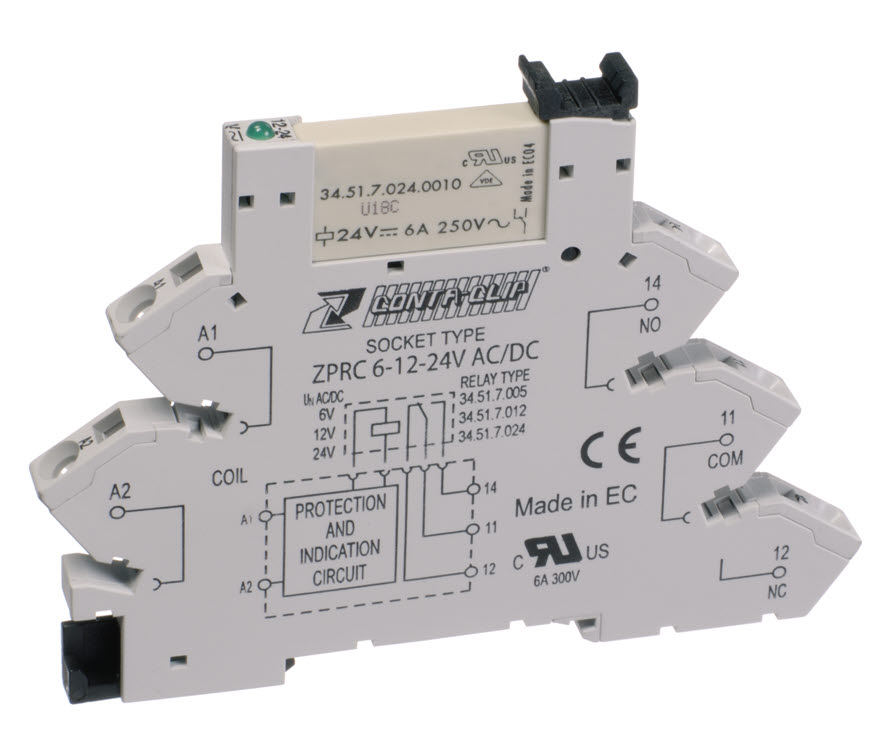

15492.2 ZPRC 6-12-24V AC/DC 连接方式弹簧连接 · 宽度 6.2 mm · 防护等级 IP20

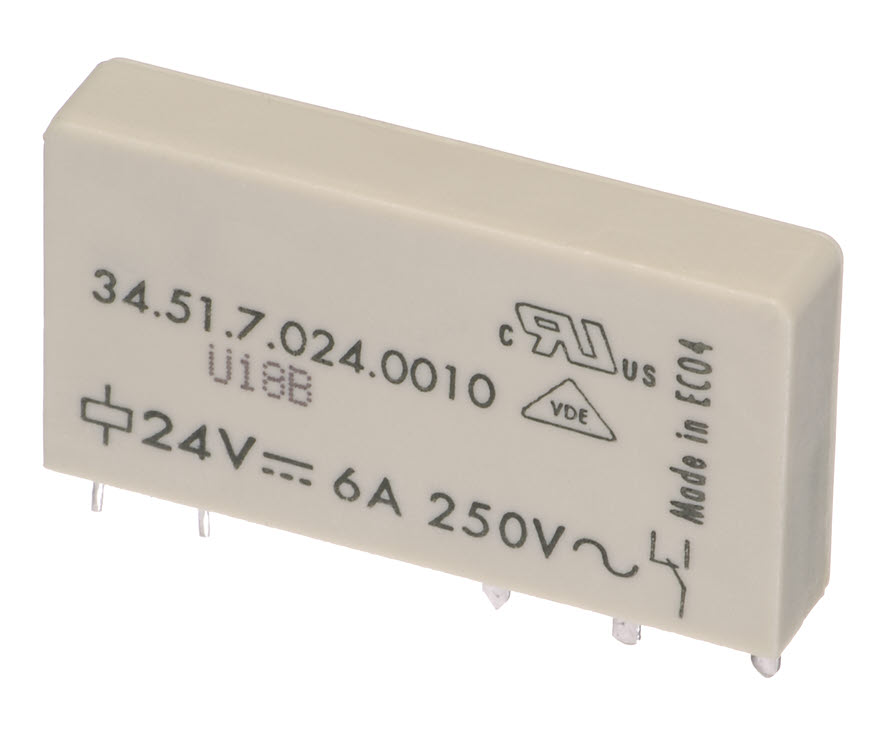

15500.2 PRC 1/5V DC 宽度 5 mm · 防护等级 RTIII (wash-tight)

15545.8 AQI/PRC/20 YE 颜色黄色 · 额定电流 36 A · 极数 20

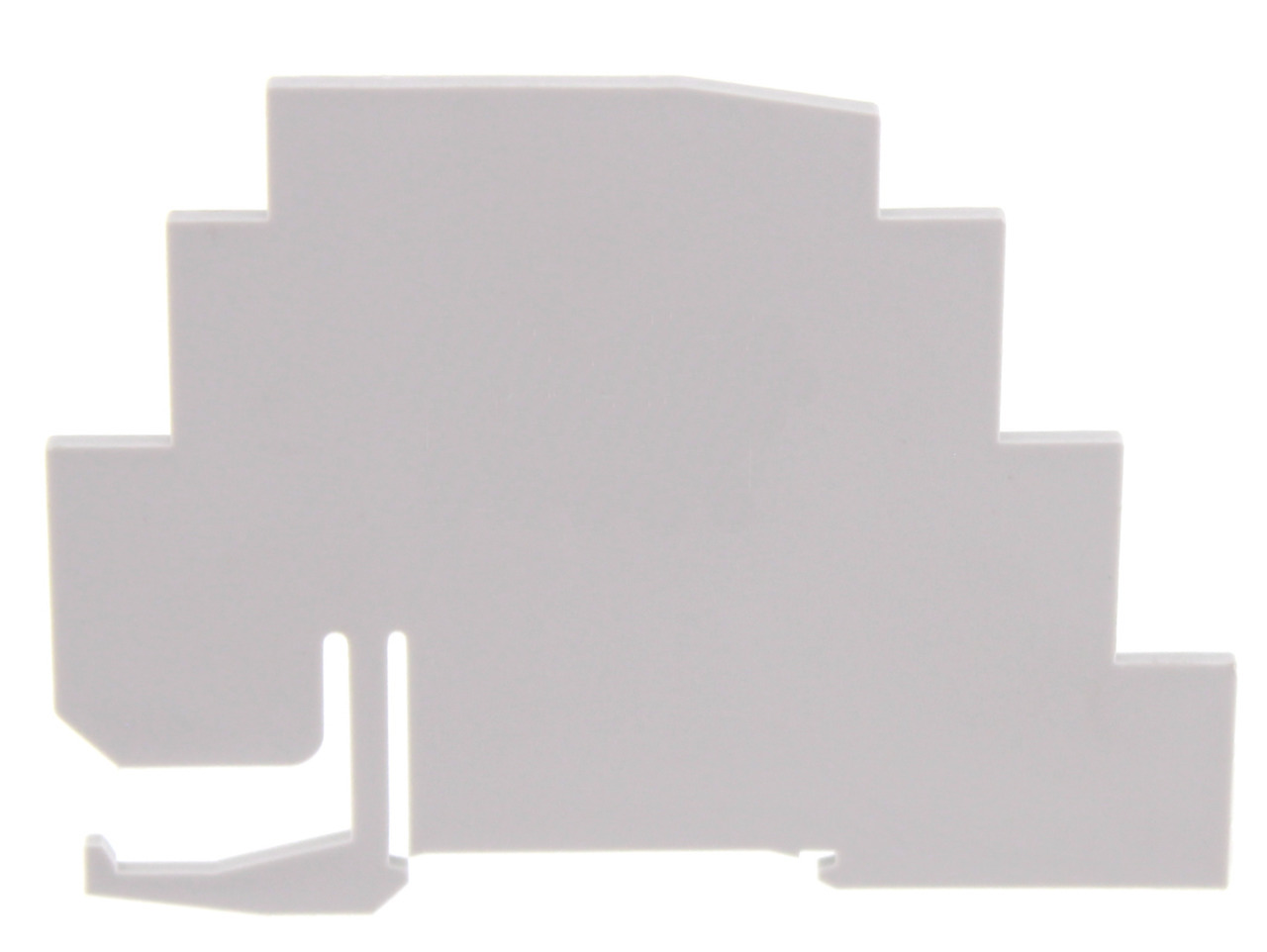

15546.2 TW/PRC GR 颜色灰色 · 宽度 1.8 mm

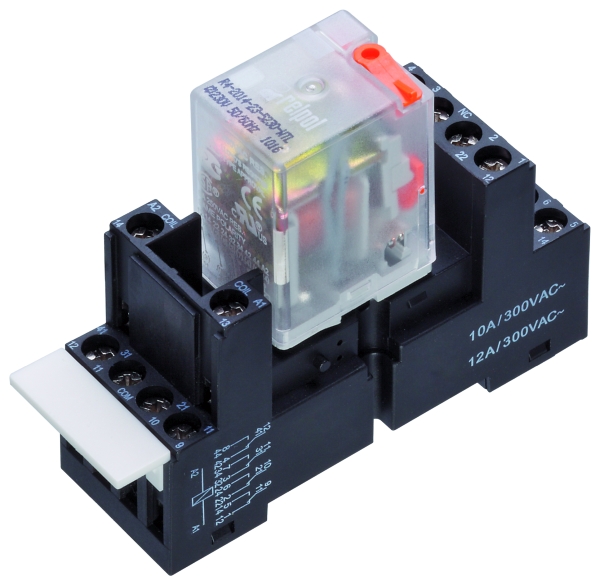

15619.2 PRSU 4/24V DC eco 连接方式螺钉连接 · 宽度 27.1 mm · 防护等级 IP20

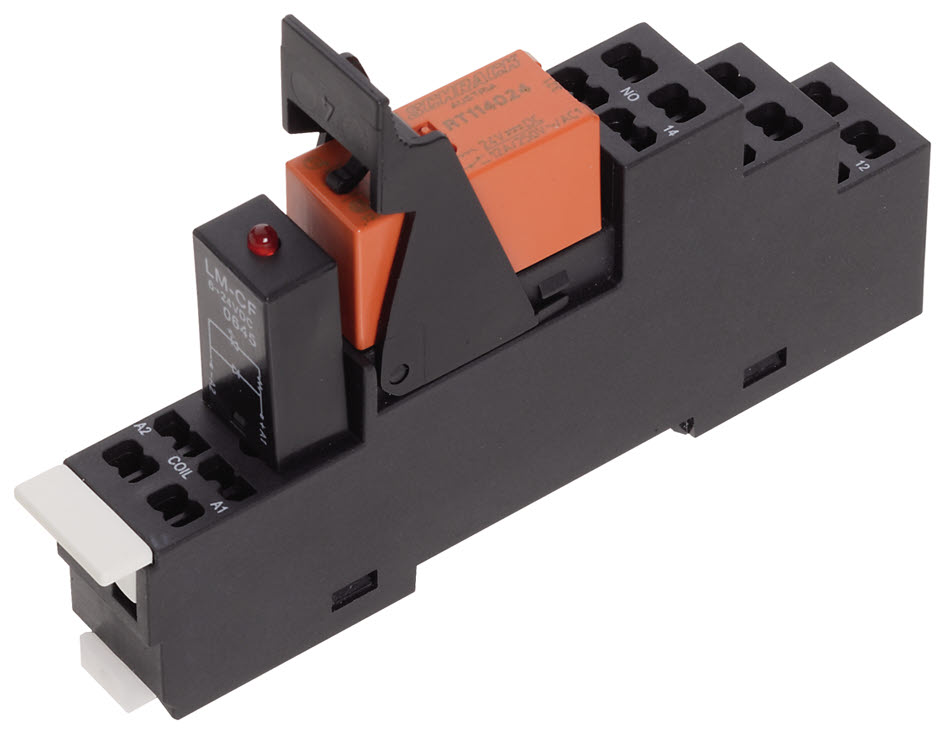

15781.2 PRSU 1Z/12V DC 连接方式弹簧连接 · 宽度 16.3 mm · 防护等级 IP20

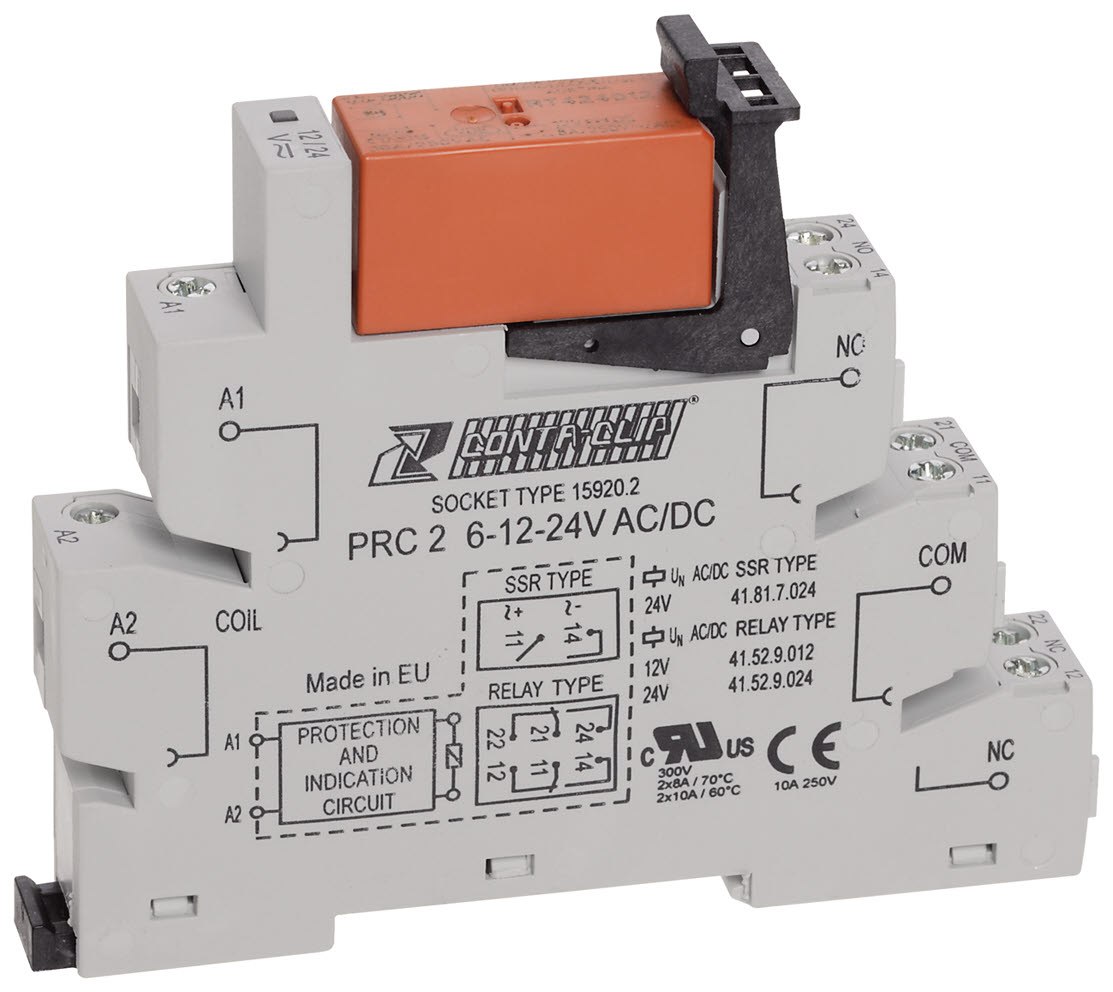

15920.2 PRC 2 6-12-24V AC/DC 连接方式螺钉连接 · 宽度 14 mm

16190.2 IRC 6-12-24V AC/DC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

16191.2 IRC 110...125V AC/DC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

16192.2 IRC 230...240V AC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

16193.2 IRCP 6-12-24V AC/DC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

16194.2 IRCP 60V AC/DC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

16195.2 IRCP 110...125V AC/DC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

16196.2 IRCP 230...240V AC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

16209.4 AQI/IRC/16 BK 颜色黑色 · 额定电流 6 A · 极数 16

16229.2 FCA/IRC 连接方式螺钉连接

16230.2 IRCU 1/6V AC/DC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

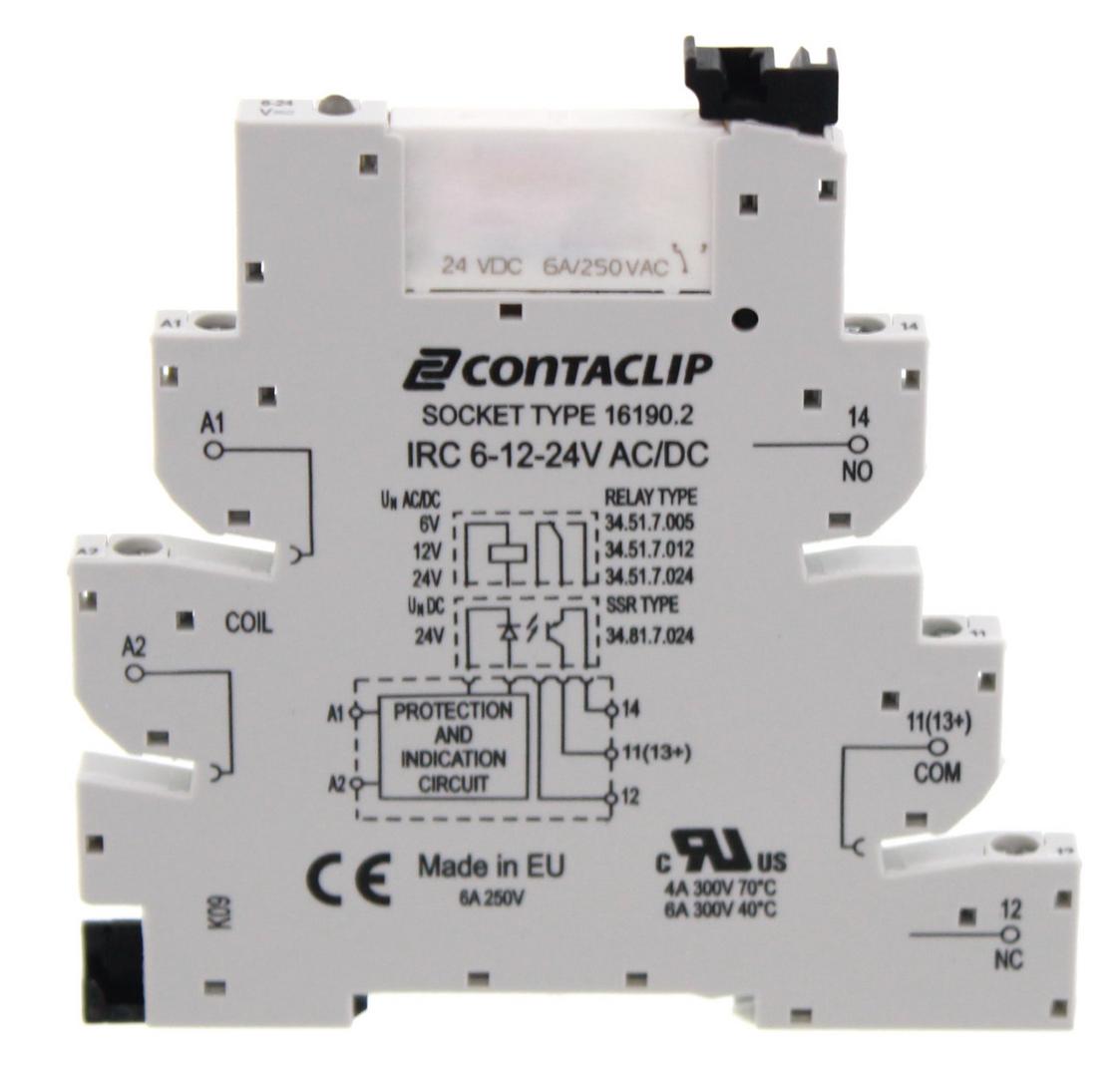

16232.2 IRCU 1/24V AC/DC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

16237.2 IRCPU 1/24V AC/DC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

16245.2 IRCIU 1/6V AC/DC 连接方式螺钉连接 · 宽度 6.2 mm · 防护等级 IP20

16507.9 AQI PPRS2/8 RD 颜色红色 · 额定电流 10 A · 极数 8

16508.9 AQI PPRS4/8 RD 颜色红色 · 额定电流 10 A · 极数 8

参数对照表

400+

货号	型号	连接方式	宽度	防护等级	长度
5400.2	RM-SR/1S/24V DC	螺钉连接	11.2 mm	–	77 mm
5401.2	RM-SG/1S/24V DC	螺钉连接	11.2 mm	–	77 mm
5402.2	RM-S/1S/24V DC	螺钉连接	11.2 mm	–	77 mm
5406.2	RM-SR/1S/24V DC/AC	螺钉连接	11.2 mm	–	77 mm
5407.2	RM-SG/1S/24V DC/AC	螺钉连接	11.2 mm	–	77 mm
5408.2	RM-S/1S/24V DC/AC	螺钉连接	11.2 mm	–	77 mm
5412.2	RM-SR/1S/48V DC	螺钉连接	11.2 mm	–	77 mm
5413.2	RM-SG/1S/48V DC	螺钉连接	11.2 mm	–	77 mm
5414.2	RM-S/1S/48V DC	螺钉连接	11.2 mm	–	77 mm
5418.2	RM-SR/1S/48V DC/AC	螺钉连接	11.2 mm	–	77 mm
5419.2	RM-SG/1S/48V DC/AC	螺钉连接	11.2 mm	–	77 mm
5420.2	RM-S/1S/48V DC/AC	螺钉连接	11.2 mm	–	77 mm
5424.2	RM-SR/1S/60V DC	螺钉连接	11.2 mm	–	77 mm
5425.2	RM-SG/1S/60V DC	螺钉连接	11.2 mm	–	77 mm
5426.2	RM-S/1S/60V DC	螺钉连接	11.2 mm	–	77 mm
5450.2	RM 1-1W/24V DC	螺钉连接	20 mm	–	87 mm
5451.2	RMD1/1W/24V DC	螺钉连接	20 mm	–	87 mm
5460.2	RM1/1W/115V AC	螺钉连接	20 mm	–	87 mm
5461.2	RMD1/1W/115V AC	螺钉连接	20 mm	–	87 mm
5462.2	RM1/1W/230V AC	螺钉连接	20 mm	–	87 mm
5463.2	RMD1/1W/230V AC	螺钉连接	20 mm	–	87 mm
5550.2	RM1/2W/24V-	螺钉连接	26 mm	–	87 mm
5551.2	RMD1/2W/24V-	螺钉连接	26 mm	–	87 mm
5562.2	RM1/2W/115V AC	螺钉连接	26 mm	–	87 mm
5563.2	RMD1/2W/115V AC	螺钉连接	26 mm	–	87 mm
5564.2	RM1/2W/230V AC	螺钉连接	26 mm	–	87 mm
5565.2	RMD1/2W/230V AC	螺钉连接	26 mm	–	87 mm
5566.2	RIM2/2W/24V+	螺钉连接	44 mm	–	87 mm
5567.2	RIMD2/2W/24V+	螺钉连接	44 mm	–	87 mm
5568.2	RIM2/2W/24V-	螺钉连接	44 mm	–	87 mm
5569.2	RIMD2/2W/24V-	螺钉连接	44 mm	–	87 mm
5570.2	RIM2/2W/48V+	螺钉连接	44 mm	–	87 mm
5571.2	RIMD2/2W/48V+	螺钉连接	44 mm	–	87 mm
5572.2	RIM2/2W/48V-	螺钉连接	44 mm	–	87 mm
5573.2	RIMD2/2W/48V-	螺钉连接	44 mm	–	87 mm
5578.2	RIM2/2W/115 ACG	螺钉连接	44 mm	–	87 mm
5579.2	RIMD2/2W/115 ACG	螺钉连接	44 mm	–	87 mm
5580.2	RIM2/2W/230 ACG	螺钉连接	44 mm	–	87 mm
5581.2	RIMD2/2W/230 ACG	螺钉连接	44 mm	–	87 mm
5582.2	RIM4/2W/24V+	螺钉连接	80 mm	–	87 mm
5583.2	RIMD4/2W/24V+	螺钉连接	80 mm	–	87 mm
5584.2	RIM4/2W/24V-	螺钉连接	80 mm	–	87 mm
5585.2	RIMD4/2W/24V-	螺钉连接	80 mm	–	87 mm
5586.2	RIM4/2W/48V+	螺钉连接	80 mm	–	87 mm
5587.2	RIMD4/2W/48V+	螺钉连接	80 mm	–	87 mm
5588.2	RIM4/2W/48V-	螺钉连接	80 mm	–	87 mm
5589.2	RIMD4/2W/48V-	螺钉连接	80 mm	–	87 mm
5594.2	RIM4/2W/115 ACG	螺钉连接	80 mm	–	87 mm
5596.2	RIM4/2W/230 ACG	螺钉连接	80 mm	–	87 mm
5597.2	RIMD4/2W/230 ACG	螺钉连接	80 mm	–	87 mm
5598.2	RM1/1W/24V AC	螺钉连接	20 mm	–	87 mm
5599.2	RMD1/1W/24V AC	螺钉连接	20 mm	–	87 mm
5602.2	RM1/1W/115V-	螺钉连接	20 mm	–	87 mm
5603.2	RMD1/1W/115V-	螺钉连接	20 mm	–	87 mm
5648.2	RM1/2W/24V AC	螺钉连接	26 mm	–	87 mm
5649.2	RMD1/2W/24V AC	螺钉连接	26 mm	–	87 mm
5652.2	RM1/2W/115V-	螺钉连接	26 mm	–	87 mm
5653.2	RMD1/2W/115V-	螺钉连接	26 mm	–	87 mm
5658.2	RIM2/2W/24 ACG	螺钉连接	44 mm	–	87 mm
5659.2	RIMD2/2W/24 ACG	螺钉连接	44 mm	–	87 mm
5662.2	RIM2/2W/115V+	螺钉连接	44 mm	–	87 mm
5663.2	RIMD2/2W/115V+	螺钉连接	44 mm	–	87 mm
5664.2	RIM2/2W/115V-	螺钉连接	44 mm	–	87 mm
5665.2	RIMD2/2W/115V-	螺钉连接	44 mm	–	87 mm
5668.2	RIM4/2W/24 ACG	螺钉连接	80 mm	–	87 mm
5669.2	RIMD4/2W/24 ACG	螺钉连接	80 mm	–	87 mm
5672.2	RIM4/2W/115V+	螺钉连接	80 mm	–	87 mm
5673.2	RIMD4/2W/115V+	螺钉连接	80 mm	–	87 mm
5674.2	RIM4/2W/115V-	螺钉连接	80 mm	–	87 mm
5770.2	RM-SR/1W/24V DC	螺钉连接	11.2 mm	–	77 mm
5771.2	RM-SG/1W/24V-	螺钉连接	11.2 mm	–	77 mm
5772.2	0M-S/1W/24V DC	螺钉连接	11.2 mm	–	77 mm
5773.2	RM-SR/1W/24V DC/AC	螺钉连接	11.2 mm	–	77 mm
5774.2	RM-SG/1W/24V DC/AC	螺钉连接	11.2 mm	–	77 mm
5775.2	RM-S/1W/24V DC/AC	螺钉连接	11.2 mm	–	77 mm
5776.2	RM-SR/1W/48V DC	螺钉连接	11.2 mm	–	77 mm
5777.2	RM-SG/1W/48V DC	螺钉连接	11.2 mm	–	77 mm
5778.2	RM-S/1W/48V DC	螺钉连接	11.2 mm	–	77 mm
5779.2	RM-SR/1W/48V DC/AC	螺钉连接	11.2 mm	–	77 mm
5780.2	RM-SG/1W/48V DC/AC	螺钉连接	11.2 mm	–	77 mm
5781.2	RM-S/1W/48V DC/AC	螺钉连接	11.2 mm	–	77 mm
5782.2	RM-SR/1W/60V DC	螺钉连接	11.2 mm	–	77 mm
5783.2	RM-SG/1W/60V DC	螺钉连接	11.2 mm	–	77 mm
5784.2	RM-S/1W/60V DC	螺钉连接	11.2 mm	–	77 mm
5800.2	RML/1W/24V DC	螺钉连接	24 mm	–	87 mm
5801.2	RML/1W/24V AC	螺钉连接	24 mm	–	87 mm
5802.2	RML/1W/48V DC	螺钉连接	24 mm	–	87 mm
5896.3	RIM8/4W/24V+	螺钉连接	151 mm	–	87 mm
5900.3	RIM2S/1W/24V+	螺钉连接	44 mm	–	87 mm
5901.3	RIM2S/1W/24V-	螺钉连接	44 mm	–	87 mm
5902.3	RIMD2S/1W/24V+	螺钉连接	44 mm	–	87 mm
5903.3	RIMD2S/1W/24V-	螺钉连接	44 mm	–	87 mm
5904.3	RIM4S/1W/24V+	螺钉连接	78 mm	–	87 mm
5905.3	RIM4S/1W/24V-	螺钉连接	78 mm	–	87 mm
5906.3	RIMD4S/1W/24V+	螺钉连接	78 mm	–	87 mm
5907.3	RIMD4S/1W/24V-	螺钉连接	78 mm	–	87 mm
5908.3	RIM8S/1W/24V+	螺钉连接	150 mm	–	87 mm
5909.3	RIM8S/1W/24V-	螺钉连接	150 mm	–	87 mm
5910.3	RIMD8S/1W/24V+	螺钉连接	150 mm	–	87 mm
5911.3	RIMD8S/1W/24V-	螺钉连接	150 mm	–	87 mm
6012.2	RIM8-16A/1W/24V+	螺钉连接	148 mm	–	87 mm
6013.2	RIM8S-16A/1W/24V+	螺钉连接	148 mm	–	87 mm
6014.2	RIM16-16A/1W/24V+	螺钉连接	290 mm	–	87 mm
6015.2	RIM16S-16A/1W/24V+	螺钉连接	290 mm	–	87 mm
6016.2	RIM2-16A/1W/24V+	螺钉连接	42 mm	–	87 mm
6017.2	RIM2S-16A/1W/24V+	螺钉连接	42 mm	–	87 mm
6018.2	RIM 4-16A/1W/24V+	螺钉连接	77 mm	–	87 mm
6019.2	RIM4S-16A/1W/24V+	螺钉连接	77 mm	–	87 mm
6021.2	RIM2/1W/24V+	螺钉连接	41 mm	–	87 mm
6022.2	RIM2/1W/24V-	螺钉连接	41 mm	–	87 mm
6023.2	RIM2/1W/24 ACG	螺钉连接	41 mm	–	87 mm
6024.2	RIM2/1W/48V+	螺钉连接	41 mm	–	87 mm
6025.2	RIM2/1W/48V-	螺钉连接	41 mm	–	87 mm
6026.2	RIM2/1W/115V+	螺钉连接	41 mm	–	87 mm
6027.2	RIM2/1W/115V-	螺钉连接	41 mm	–	87 mm
6028.2	RIM2/1W/115 ACG	螺钉连接	41 mm	–	87 mm
6029.2	RIM2/1W/230 ACG	螺钉连接	41 mm	–	87 mm
6030.2	RIMD2/1W/24V+	螺钉连接	41 mm	–	87 mm
6031.2	RIMD2/1W/24V-	螺钉连接	41 mm	–	87 mm
6032.2	RIMD2/1W/24 ACG	螺钉连接	41 mm	–	87 mm
6033.2	RIMD2/1W/48V+	螺钉连接	41 mm	–	87 mm
6034.2	RIMD2/1W/48V-	螺钉连接	41 mm	–	87 mm
6035.2	RIMD2/1W/115V+	螺钉连接	41 mm	–	87 mm
6036.2	RIMD2/1W/115V-	螺钉连接	41 mm	–	87 mm
6037.2	RIMD2/1W/115 ACG	螺钉连接	41 mm	–	87 mm
6038.2	RIMD2/1W/230 ACG	螺钉连接	41 mm	–	87 mm
6039.2	RIM4/1W/24V+	螺钉连接	77 mm	–	87 mm
6040.2	RIM4/1W/24V-	螺钉连接	77 mm	–	87 mm
6041.2	RIM4/1W/24 ACG	螺钉连接	77 mm	–	87 mm
6042.2	RIM4/1W/48V+	螺钉连接	77 mm	–	87 mm
6043.2	RIM4/1W/48V-	螺钉连接	77 mm	–	87 mm
6044.2	RIM4/1W/115V+	螺钉连接	77 mm	–	87 mm
6045.2	RIM4/1W/115V-	螺钉连接	77 mm	–	87 mm
6046.2	RIM4/1W/115 ACG	螺钉连接	77 mm	–	87 mm
6047.2	RIM4/1W/230 ACG	螺钉连接	77 mm	–	87 mm
6048.2	RIMD4/1W/24V+	螺钉连接	77 mm	–	87 mm
6049.2	RIMD4/1W/24V-	螺钉连接	77 mm	–	87 mm
6050.2	RIMD4/1W/24 ACG	螺钉连接	77 mm	–	87 mm
6051.2	RIMD4/1W/48V+	螺钉连接	77 mm	–	87 mm
6052.2	RIMD4/1W/48V-	螺钉连接	77 mm	–	87 mm
6053.2	RIMD4/1W/115V+	螺钉连接	77 mm	–	87 mm
6054.2	RIMD4/1W/115V-	螺钉连接	77 mm	–	87 mm
6055.2	RIMD4/1W/115V ACG	螺钉连接	77 mm	–	87 mm
6056.2	RIMD4/1W/230 ACG	螺钉连接	77 mm	–	87 mm
6057.2	RIM8/1W/24V+	螺钉连接	148 mm	–	87 mm
6058.2	RIM8/1W/24V-	螺钉连接	148 mm	–	87 mm
6059.2	RIM8/1W/24 ACG	螺钉连接	148 mm	–	87 mm
6060.2	RIM8/1W/48V+	螺钉连接	148 mm	–	87 mm
6061.2	RIM8/1W/48V-	螺钉连接	148 mm	–	87 mm
6062.2	RIM8/1W/115V+	螺钉连接	148 mm	–	87 mm
6063.2	RIM8/1W/115V -	螺钉连接	148 mm	–	87 mm
6064.2	RIM8/1W/115 ACG	螺钉连接	148 mm	–	87 mm
6065.2	RIM8/1W/230 ACG	螺钉连接	148 mm	–	87 mm
6066.2	RIMD8/1W/24V+	螺钉连接	148 mm	–	87 mm
6067.2	RIMD8/1W/24V-	螺钉连接	148 mm	–	87 mm
6068.2	RIMD8/1W/24 ACG	螺钉连接	148 mm	–	87 mm
6069.2	RIMD8/1W/48V+	螺钉连接	148 mm	–	87 mm
6070.2	RIMD8/1W/48V-	螺钉连接	148 mm	–	87 mm
6071.2	RIMD8/1W/115V+	螺钉连接	148 mm	–	87 mm
6072.2	RIMD8/1W/115V-	螺钉连接	148 mm	–	87 mm
6073.2	RIMD8/1W/115 ACG	螺钉连接	148 mm	–	87 mm
6074.2	RIMD8/1W/230 ACG	螺钉连接	148 mm	–	87 mm
6075.2	RIM16/1W/24V+	螺钉连接	291 mm	–	87 mm
6076.2	RIM16/1W/24V-	螺钉连接	291 mm	–	87 mm
6077.2	RIM16/1W/24 ACG	螺钉连接	291 mm	–	87 mm
6078.2	RIM16/1W/48V+	螺钉连接	291 mm	–	87 mm
6079.2	RIM16/1W/48V-	螺钉连接	291 mm	–	87 mm
6080.2	RIM16/1W/115V+	螺钉连接	291 mm	–	87 mm
6081.2	RIM16/1W/115V-	螺钉连接	291 mm	–	87 mm
6082.2	RIM16/1W/115 ACG	螺钉连接	291 mm	–	87 mm
6083.2	RIM16/1W/230 ACG	螺钉连接	291 mm	–	87 mm
6084.2	RIMD16/1W/24V+	螺钉连接	291 mm	–	87 mm
6085.2	RIMD16/1W/24V-	螺钉连接	291 mm	–	87 mm
6086.2	RIMD16/1W/24 ACG	螺钉连接	291 mm	–	87 mm
6087.2	RIMD16/1W/48V+	螺钉连接	291 mm	–	87 mm
6088.2	RIMD16/1W/48V-	螺钉连接	291 mm	–	87 mm
6089.2	RIMD16/1W/115V+	螺钉连接	291 mm	–	87 mm
6090.2	RIMD16/1W/115V-	螺钉连接	291 mm	–	87 mm
6091.2	RIMD16/1W/115 ACG	螺钉连接	291 mm	–	87 mm
6092.2	RIMD16/1W/230 ACG	螺钉连接	291 mm	–	87 mm
6155.2	RIM8/2W/24V+	螺钉连接	151 mm	–	87 mm
6156.2	RIMD8/2W/24V+	螺钉连接	151 mm	–	87 mm
6157.2	RIM8/2W/24V-	螺钉连接	151 mm	–	87 mm
6158.2	RIMD8/2W/24V-	螺钉连接	151 mm	–	87 mm
6159.2	RIM8/2W/24 ACG	螺钉连接	151 mm	–	87 mm
6160.2	RIMD8/2W/24 ACG	螺钉连接	151 mm	–	87 mm
6161.2	RIM8/2W/48V+	螺钉连接	151 mm	–	87 mm
6162.2	RIMD8/2W/48V+	螺钉连接	151 mm	–	87 mm
6163.2	RIM8/2W/48V-	螺钉连接	151 mm	–	87 mm
6164.2	RIMD8/2W/48V-	螺钉连接	151 mm	–	87 mm
6165.2	RIM8/2W/115V+	螺钉连接	151 mm	–	87 mm
6166.2	RIMD8/2W/115V+	螺钉连接	151 mm	–	87 mm
6167.2	RIM8/2W/115V-	螺钉连接	151 mm	–	87 mm
6168.2	RIMD8/2W/115V-	螺钉连接	151 mm	–	87 mm
6169.2	RIM8/2W/115 ACG	螺钉连接	151 mm	–	87 mm
6170.2	RIMD8/2W/115 ACG	螺钉连接	151 mm	–	87 mm
6171.2	RIM8/2W/230 ACG	螺钉连接	151 mm	–	87 mm
6172.2	RIMD8/2W/230 ACG	螺钉连接	151 mm	–	87 mm
6173.2	RIM16/2W/24V+	螺钉连接	293 mm	–	87 mm
6174.2	RIMD16/2W/24V+	螺钉连接	293 mm	–	87 mm
6175.2	RIM16/2W/24V-	螺钉连接	293 mm	–	87 mm
6176.2	RIMD16/2W/24V-	螺钉连接	293 mm	–	87 mm
6177.2	RIM16/2W/24 ACG	螺钉连接	293 mm	–	87 mm
6178.2	RIMD16/2W/24 ACG	螺钉连接	293 mm	–	87 mm
6179.2	RIM16/2W/48V+	螺钉连接	293 mm	–	87 mm
6180.2	RIMD16/2W/48V+	螺钉连接	293 mm	–	87 mm
6181.2	RIM16/2W/48V-	螺钉连接	293 mm	–	87 mm
6182.2	RIMD16/2W/48V-	螺钉连接	293 mm	–	87 mm
6183.2	RIM16/2W/115V+	螺钉连接	293 mm	–	87 mm
6184.2	RIMD16/2W/115V+	螺钉连接	293 mm	–	87 mm
6185.2	RIM16/2W/115V-	螺钉连接	293 mm	–	87 mm
6186.2	RIMD16/2W/115V-	螺钉连接	293 mm	–	87 mm
6187.2	RIM16/2W/115 ACG	螺钉连接	293 mm	–	87 mm
6188.2	RIMD16/2W/115 ACG	螺钉连接	293 mm	–	87 mm
6189.2	RIM16/2W/230 ACG	螺钉连接	293 mm	–	87 mm
6190.2	RIMD16/2W/230 ACG	螺钉连接	293 mm	–	87 mm
6207.2	RIM8F/1W/24V+	–	–	–	–
6208.2	RIM8F/1W/24V-	–	–	–	–
6229.2	RMD 1Au/2W/24V-	螺钉连接	26 mm	–	87 mm
6239.2	RV10/AD/1W/24V DC/AC	–	–	–	–
6274.2	RIM4/24 BC	–	–	–	–
6291.2	RIMCD 8/1S/24V DC/AC	–	–	–	–
6346.2	RIMCD 16/1S/24V DC/AC	–	–	–	–
6347.2	RM-SR/1S/12V DC	螺钉连接	11.2 mm	–	77 mm
6348.2	RM-SG/1S/12V DC	螺钉连接	11.2 mm	–	77 mm
6349.2	RM-S/1S/12V DC	螺钉连接	11.2 mm	–	77 mm
6353.2	RM-SR/1W/12V DC	螺钉连接	11.2 mm	–	77 mm
6354.2	RM-SG/1W/12V DC	螺钉连接	11.2 mm	–	77 mm
6355.2	RM-S/1W/12V DC	螺钉连接	11.2 mm	–	77 mm
6356.2	RM-SR/1S/12V DC/AC	螺钉连接	11.2 mm	–	77 mm
6357.2	RM-SG/1S/12V DC/AC	螺钉连接	11.2 mm	–	77 mm
6358.2	RM-S/1S/12V DC/AC	螺钉连接	11.2 mm	–	77 mm
6362.2	RM-SR/1W/12V DC/AC	螺钉连接	11.2 mm	–	77 mm
6363.2	RM-SG/1W/12V DC/AC	螺钉连接	11.2 mm	–	77 mm
6364.2	RM-S/1W/12V DC/AC	螺钉连接	11.2 mm	–	77 mm
6480.2	PRS 1/24V AC	–	12.7 mm	RTII	29 mm
6481.2	PRS 1/230V AC	–	12.7 mm	RTII	29 mm
6482.2	PRS 2/12V DC	–	12.7 mm	RTII	29 mm
6483.2	PRS 2/24V DC	–	12.7 mm	RTII	29 mm
6484.2	PRS 2/24V AC	–	12.7 mm	RTII	29 mm
6485.2	PRS 2/230V AC	–	12.7 mm	RTII	29 mm
6486.2	PRS 4/12V DC	–	22.5 mm	RTII (flux proof)	28 mm
6487.2	PRS 4/24V DC	–	22.5 mm	RTII (flux proof)	28 mm
6488.2	PRS 4/24V AC	–	22.5 mm	RTII (flux proof)	28 mm
6489.2	PRS 4/230V AC	–	22.5 mm	RTII (flux proof)	28 mm
6584.2	RM1/1W/12V-	螺钉连接	20 mm	–	87 mm
6585.2	RMD1/1W/12V-	螺钉连接	20 mm	–	87 mm
6586.2	RM1/2W/12V-	螺钉连接	26 mm	–	87 mm
6587.2	RMD1/2W/12V-	螺钉连接	26 mm	–	87 mm
6588.2	RIMS2S/1W/24 ACG	螺钉连接	44 mm	–	87 mm
6589.2	RIMD2S/1W/24 ACG	螺钉连接	44 mm	–	87 mm
6590.2	RIM2S/1W/230 ACG	螺钉连接	44 mm	–	87 mm
6591.2	RIMD2S/1W/230 ACG	螺钉连接	44 mm	–	87 mm
6592.2	RIM4S/1W/24 ACG	–	–	–	–
6593.2	RIMD4S/1W/24 ACG	螺钉连接	78 mm	–	87 mm
6594.2	RIM4S/1W/230 ACG	–	–	–	–
6595.2	RIMD4S/1W/230 ACG	螺钉连接	78 mm	–	87 mm
6596.2	RIM8S/1W/24 ACG	螺钉连接	150 mm	–	87 mm
6597.2	RIMD8S/1W/24 ACG	螺钉连接	150 mm	–	87 mm
6598.2	RIM8S/1W/230 ACG	螺钉连接	150 mm	–	87 mm
6599.2	RIMD8S/1W/230 ACG	螺钉连接	150 mm	–	87 mm
6600.2	RIM16S/1W/24V+	螺钉连接	292 mm	–	87 mm
6601.2	RIMD16S/1W/24V+	螺钉连接	292 mm	–	87 mm
6602.2	RIM16S/1W/24V-	螺钉连接	292 mm	–	87 mm
6603.2	RIMD16S/1W/24V-	螺钉连接	292 mm	–	87 mm
6604.2	RIM16S/1W/24 ACG	螺钉连接	292 mm	–	87 mm
6605.2	RIMD16S/1W/24 ACG	螺钉连接	292 mm	–	87 mm
6606.2	RIM2-2S/1W/24V+	螺钉连接	44 mm	–	87 mm
6607.2	RIMD2-2S/1W/24V+	螺钉连接	44 mm	–	87 mm
6608.2	RIM2-2S/1W/24V-	螺钉连接	44 mm	–	87 mm
6609.2	RIMD2-2S/1W/24V-	螺钉连接	44 mm	–	87 mm
6610.2	RIM2-2S/1W/24 ACG	螺钉连接	44 mm	–	87 mm
6611.2	RIMD2-2S/1W/24 ACG	螺钉连接	44 mm	–	87 mm
6612.2	RIM2-2S/1W/230 ACG	螺钉连接	44 mm	–	87 mm
6613.2	RIMD2-2S/1W/230 ACG	螺钉连接	44 mm	–	87 mm
6614.2	RIM4-2S/1W/24V+	螺钉连接	78 mm	–	87 mm
6615.2	RIMD4-2S/1W/24V+	螺钉连接	78 mm	–	87 mm
6616.2	RIM4-2S/1W/24V-	螺钉连接	78 mm	–	87 mm
6617.2	RIMD4-2S/1W/24V-	螺钉连接	78 mm	–	87 mm
6618.2	RIM4-2S/1W/24 ACG	螺钉连接	78 mm	–	87 mm
6619.2	RIMD4-2S/1W/24 ACG	螺钉连接	78 mm	–	87 mm
6620.2	RIM4-2S/1W/230 ACG	螺钉连接	78 mm	–	87 mm
6621.2	RIMD4-2S/1W/230 ACG	螺钉连接	78 mm	–	87 mm
6622.2	RIM8-2S/1W/24V+	螺钉连接	150 mm	–	87 mm
6623.2	RIMD8-2S/1W/24V+	螺钉连接	150 mm	–	87 mm
6624.2	RIM8-2S/1W/24V-	螺钉连接	150 mm	–	87 mm
6625.2	RIMD8-2S/1W/24V-	螺钉连接	150 mm	–	87 mm
6626.2	RIM8-2S/1W/24 ACG	螺钉连接	150 mm	–	87 mm
6627.2	RIMD8-2S/1W/24 ACG	螺钉连接	150 mm	–	87 mm
6628.2	RIM8-2S/1W/230 ACG	螺钉连接	150 mm	–	87 mm
6629.2	RIMD8-2S/1W/230 ACG	螺钉连接	150 mm	–	87 mm
6630.2	RIM16S/1W/230 ACG	螺钉连接	292 mm	–	87 mm
6631.2	RIMD16S/1W/230 ACG	螺钉连接	292 mm	–	87 mm
6632.2	RIM16-2S/1W/24V+	螺钉连接	292 mm	–	87 mm
6633.2	RIMD16-2S/1W/24V+	螺钉连接	292 mm	–	87 mm
6634.2	RIM16-2S/1W/24V-	螺钉连接	292 mm	–	87 mm
6635.2	RIMD16-2S/1W/24V-	螺钉连接	292 mm	–	87 mm
6636.2	RIM16-2S/1W/24 ACG	螺钉连接	292 mm	–	87 mm
6637.2	RIMD16-2S/1W/24 ACG	螺钉连接	292 mm	–	87 mm
6638.2	RIM16-2S/1W/230 ACG	螺钉连接	292 mm	–	87 mm
6639.2	RIMD16-2S/1W/230 ACG	螺钉连接	292 mm	–	87 mm
6640.2	RIM2-16A/1W/24V-	螺钉连接	42 mm	–	87 mm
6641.2	RIM2S-16A/1W/24V-	螺钉连接	42 mm	–	87 mm
6642.2	RIM4-16A/1W/24V-	螺钉连接	77 mm	–	87 mm
6643.2	RIM4S-16A/1W/24V-	螺钉连接	77 mm	–	87 mm
6644.2	RIM8-16A/1W/24V-	螺钉连接	148 mm	–	87 mm
6645.2	RIM8S-16A/1W/24V-	螺钉连接	148 mm	–	87 mm
6646.2	RIM16-16A/1W/24V-	螺钉连接	290 mm	–	87 mm
6647.2	RIM16S-16A/1W/24V-	螺钉连接	290 mm	–	87 mm
6648.2	RIMD2-16A/1W/24V+	螺钉连接	42 mm	–	87 mm
6649.2	RIMD2-16A/1W/24V-	螺钉连接	42 mm	–	87 mm
6650.2	RIMD2S-16A/1W/24V+	螺钉连接	42 mm	–	87 mm
6651.2	RIMD2S-16A/1W/24V-	螺钉连接	42 mm	–	87 mm
6652.2	RIMD4-16A/1W/24V+	螺钉连接	77 mm	–	87 mm
6653.2	RIMD4-16A/1W/24V-	螺钉连接	77 mm	–	87 mm
6654.2	RIMD4S-16A/1W/24V+	螺钉连接	77 mm	–	87 mm
6655.2	RIMD4S-16A/1W/24V-	螺钉连接	77 mm	–	87 mm
6656.2	RIMD8-16A/1W/24V+	螺钉连接	148 mm	–	87 mm
6657.2	RIMD8-16A/1W/24V-	螺钉连接	148 mm	–	87 mm
6658.2	RIMD8S-16A/1W/24V+	螺钉连接	148 mm	–	87 mm
6659.2	RIMD8S-16A/1W/24V-	螺钉连接	148 mm	–	87 mm
6660.2	RIMD16-16A/1W/24V+	螺钉连接	290 mm	–	87 mm
6661.2	RIMD16-16A/1W/24V-	螺钉连接	290 mm	–	87 mm
6662.2	RIMD16S-16A/1W/24V+	螺钉连接	290 mm	–	87 mm
6663.2	RIMD16S-16A/1W/24V-	螺钉连接	290 mm	–	87 mm
6804.0	PRS 1/24V DC	–	12.7 mm	RTII	29 mm
6896.0	RIM4/1W/12V-	–	–	–	–
6920.0	RML-L/1W/24V-	螺钉连接	24 mm	–	87 mm
6923.0	RV10/AD/2W/24V DC/AC	–	–	–	–
6925.0	RM1/2W/SP/24V-	–	–	–	–
6939.0	PRS 1/24VDC-16A	–	12.7 mm	–	29 mm
6940.0	PRS 1L/24V DC	–	12.7 mm	RTII	29 mm
6996.0	PRS 1/12V DC	–	12.7 mm	RTII	29 mm
15006.2	RIMXD8/1W/12V+	–	–	–	–
15010.2	RIMXD8/1W/24V-	–	–	–	–
15011.2	RIMXD8/1W/24V AC/DC	–	–	–	–
15016.2	RIMXD16/1W/24V-	–	–	–	–
15017.2	RIMXD16/1W/24V AC/DC	–	–	–	–
15067.2	RIM 2/2W/12V+	–	–	–	–
15076.2	RIMD2/1W/230ACG/NN	–	–	–	–
15135.2	PRS 1	螺钉连接	15.8 mm	IP20	76 mm
15136.2	PRS 2	螺钉连接	15.7 mm	IP20	76 mm
15137.2	PRS 4	螺钉连接	27.1 mm	IP20	76 mm
15138.2	PRS C1/2	–	–	–	–
15140.2	PRS C4	–	–	–	–
15141.2	PRS LED(RD) 24V DC	–	–	–	–
15142.2	PRS LED(RD) 230V AC	–	–	–	–
15163.2	PRSU 1/12V DC	螺钉连接	15.7 mm	IP20	76 mm
15164.2	PRSU 1/24V AC	螺钉连接	15.7 mm	IP20	76 mm
15165.2	PRSU 2/12V DC	螺钉连接	15.6 mm	IP20	76 mm
15166.2	PRSU 2/24V AC	螺钉连接	15.6 mm	IP20	76 mm
15167.2	PRSU 4/12V DC	螺钉连接	27.1 mm	IP20	76 mm
15168.2	PRSU 4/24V AC	螺钉连接	27.1 mm	IP20	76 mm
15169.2	PRSU 1/24V DC	螺钉连接	15.7 mm	IP20	76 mm
15170.2	PRSU 1/230V AC	螺钉连接	15.7 mm	IP20	76 mm
15171.2	PRSU 2/24V DC	螺钉连接	15.6 mm	IP20	76 mm
15172.2	PRSU 2/230V AC	螺钉连接	15.6 mm	IP20	76 mm
15173.2	PRSU 4/24V DC	螺钉连接	27.1 mm	IP20	76 mm
15174.2	PRSU 4/230V AC	螺钉连接	27.1 mm	IP20	76 mm
15175.2	PRS LED(RD) 24V UC	–	–	–	–
15204.2	RIM 4/1W/24V+/ZR	–	–	–	–
15205.2	RIM 8/1W/24V+/ZR	–	–	–	–
15206.2	RIM 16/1W/24V+/ZR	–	–	–	–
15226.2	RIM8C/1W/12V-	–	–	–	–
15228.2	PRS 1/115V AC	–	12.7 mm	RTII (flux proof)	29 mm
15229.2	PRS 2/115V AC	–	12.7 mm	RTII	29 mm
15233.2	PRSU 2G/24V DC	螺钉连接	16.6 mm	IP20	76 mm
15236.2	PRSU 2G/230V AC	螺钉连接	15.6 mm	IP20	76 mm
15242.2	RMS-SR/1W/24VAC/DC	–	–	–	–
15257.2	PRS 4/115V AC	–	22.5 mm	RTII (flux proof)	28 mm
15317.2	RIM 8-16A/1W/24V+/ZR	–	–	–	–
15320.2	PRS 2 G	螺钉连接	15.7 mm	IP20	76 mm
15324.2	PRS 4 G	螺钉连接	27.1 mm	IP20	76 mm
15332.2	PRSU 4G/24V DC	螺钉连接	27.1 mm	IP20	76 mm
15334.2	PRS 2/48V DC	–	12.7 mm	RTII	29 mm
15368.2	PRS 4/220V DC	–	22.5 mm	RTII (flux proof)	28 mm
15371.2	PRSU 4G/24V AC	螺钉连接	27.1 mm	IP20	76 mm
15372.2	PRSU 4G/230V AC	螺钉连接	27.1 mm	IP20	76 mm
15385.2	PRSU 2G/24V AC	螺钉连接	15.6 mm	IP20	76 mm
15392.2	PRSU 4/12V AC	螺钉连接	27.1 mm	IP20	76 mm
15393.2	PRS 4/12V AC	–	22.5 mm	RTII (flux proof)	28 mm
15411.2	PRSU 2/48V DC	螺钉连接	15.6 mm	IP20	76 mm
15413.2	PRSU 2/115V AC	螺钉连接	15.6 mm	IP20	76 mm
15414.2	PRSU 2G/12V DC	螺钉连接	15.6 mm	IP20	76 mm
15415.2	PRSU 2G/48V DC	螺钉连接	15.6 mm	IP20	76 mm
15417.2	PRSU 2G/115V AC	螺钉连接	15.6 mm	IP20	76 mm
15418.2	PRSU 1/115V AC	螺钉连接	15.7 mm	IP20	76 mm
15419.2	PRSU 1L/24V DC	螺钉连接	15.7 mm	IP20	76 mm
15420.2	PRSU 4G/12V AC	螺钉连接	27.1 mm	IP20	76 mm
15421.2	PRSU 4G/12V DC	螺钉连接	27.1 mm	IP20	76 mm
15422.2	PRS LED(RD)/110V DC	–	–	–	–
15431.2	PRS 4 Z	弹簧连接	31 mm	IP20	98 mm
15432.2	RIM8/1W/24V-/ZR	–	–	–	–
15461.2	PRS 4/48V DC	–	22.5 mm	RTII (flux proof)	28 mm
15488.2	PRC 6-12-24V AC/DC	螺钉连接	6.2 mm	IP20	87.3 mm
15489.2	PRC 220...240V AC/DC	螺钉连接	6.2 mm	IP20	87.3 mm
15490.2	PRC 6-12-24V DC	螺钉连接	6.2 mm	IP20	87.3 mm
15491.2	PRC LW 220...240V AC	螺钉连接	6.2 mm	IP20	87.3 mm
15492.2	ZPRC 6-12-24V AC/DC	弹簧连接	6.2 mm	IP20	93 mm
15493.2	ZPRC 220...240V AC/DC	弹簧连接	6.2 mm	IP20	93 mm

本页显示 400 / 657 个货号。查具体货号请用站内搜索 —— 搜索覆盖全部 16,990 个货号。

继电器技术

产品系列

全部型号

参数对照表

把货号发给我们，剩下的交给我们

把货号发给我们，
剩下的交给我们
